MAX4583CUE+

模拟开关, 3 放大器, SPDT, 80 ohm, 2V 至 12V, ± 2V 至 ± 6V, TSSOP, 16 引脚

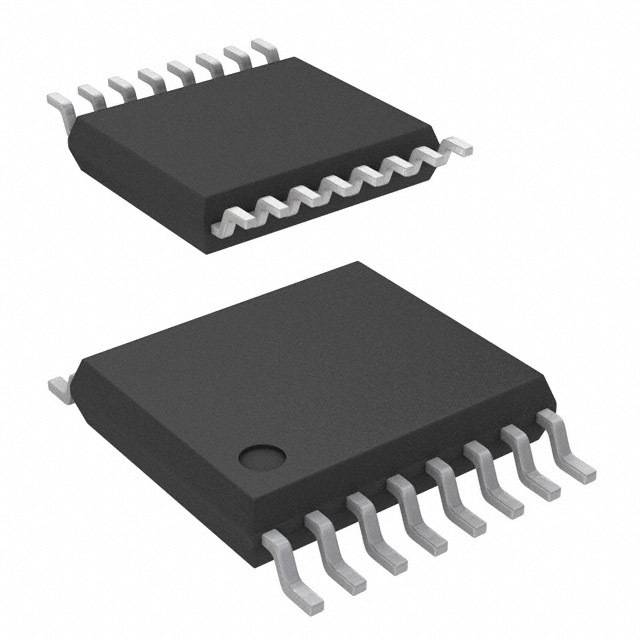

The from Products is a low voltage three single-pole/double-throw SPDT switch in 16 pin TSSOP package. This device can handle rail to rail analogue signals. All digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS logic compatibility when using single +5V or dual ±5V supplies. It is used in battery operated equipment, audio and video signal routing, communications circuits, automotive, low voltage and data acquisition systems.

.

Supply voltage range from 2V to 12V and ±2V to ±6V

.

Operating temperature range from 0°C to 70°C

.

Low distortion of less than 0.02% 600 ohm

.

High off isolation of less than -74dB at RL = 50 ohm, f = 1MHz with dual supplies

.

Maximum switch on-resistance of 80 ohm at TA = 25°C with dual supplies

.

Maximum switch on-resistance match between channels is 4ohm at TA = +25°C with dual supplies

.

Low off leakage current of 1nA at TA = 25°C dual supplies

.

Maximum switch on-resistance flatness is 10 ohm at TA = 25°C with dual supplies

.

Low on-leakage current of 1nA at TA= 25°C dual supplies

.

Low channel to channel crosstalk of less than -73dB at RL = 50 ohm, f = 1MHz with dual supplies
