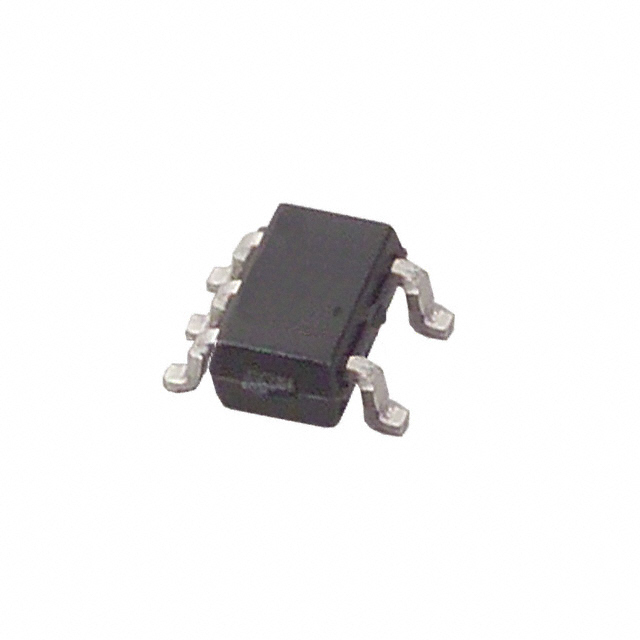

MAXIM INTEGRATED PRODUCTS MAX4715EXK+T 模拟开关, 低电压, SPST - 常开, 1 放大器, 1.2 ohm, 1.6V 至 3.6V, SC-70, 5 引脚
The is a low on-resistance, low voltage, single-supply, SPST analogue switch in 5 pin SC-70 package. This device has fast switching speeds tON = 18ns max, tOFF = 12ns max. When powered from a +3V supply, the device offer 0.4ohm max on-resistance RON with 0.1ohm max RON flatness. Their digital logic inputs are +1.8V CMOS compatible when using a single +3V supply. Typical applications include power routing, audio and video signal routing, low voltage data acquisition systems, PCMCIA cards, cellular phones, modems and hard drives.
供电电流 40 nA
电路数 1
通道数 1
针脚数 5
耗散功率 247 mW
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 247 mW
电源电压 1.6V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 1.6 V
安装方式 Surface Mount
引脚数 5
封装 SC-70-5
长度 2 mm
宽度 1.25 mm
高度 0.9 mm
封装 SC-70-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 便携式器材, 信号处理, Communications & Networking, Signal Processing, Portable Devices, 通信与网络
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX4715EXK+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX4715EXK-T 美信 | 完全替代 | MAX4715EXK+T和MAX4715EXK-T的区别 |
