MAX4594EXK+T

MAXIM INTEGRATED PRODUCTS  MAX4594EXK+T  模拟开关, 低电压, SPST - 常开, 1 放大器, 20 ohm, 2V 至 5.5V, SC-70, 5 引脚

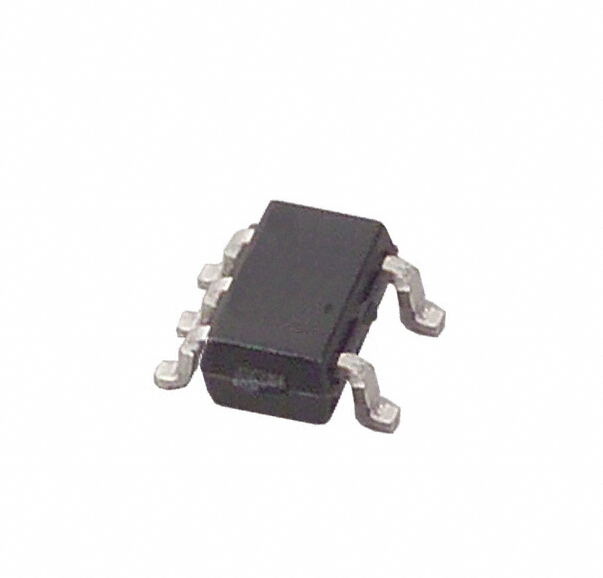

The is a low voltage, single supply, SPST CMOS analogue switch in 5 pin SC-70 package. This analogue switch operates from single 2V to 5.5V supply. The MAX4594 is normally open NO switch. It has 10ohm maximum on-resistance RON with 1.5ohm maximum RON flatness over the analogue signal range at TA = +25°C when powered from 5V supply. The switch offers low 0.5nA leakage currents and fast switching times less than 40ns. It is used in battery operated equipment, audio and video signal routing, PCMCIA cards and DSL modems.

.

TTL/CMOS logic compatible

.

Operating temperature range from -40°C to 85°C

.

Fast switching, tON = 35ns maximum and tOFF = 40ns maximum

.

Charge injection of 2pC at CL = 1nF TA = +25°C, 5V supply

.

On-channel -3dB bandwidth of 300MHz at TA = +25°C with 5V supply

.

V+ supply current of 1µA with 5V supply

.

Off isolation of -80dB at f = 1MHz with 5V supply
