MAX4751EUD+

MAXIM INTEGRATED PRODUCTS  MAX4751EUD+  模拟开关, 低电压, SPST - 常开, 4 放大器, 2.5 ohm, 1.6V 至 3.6V, TSSOP, 14 引脚

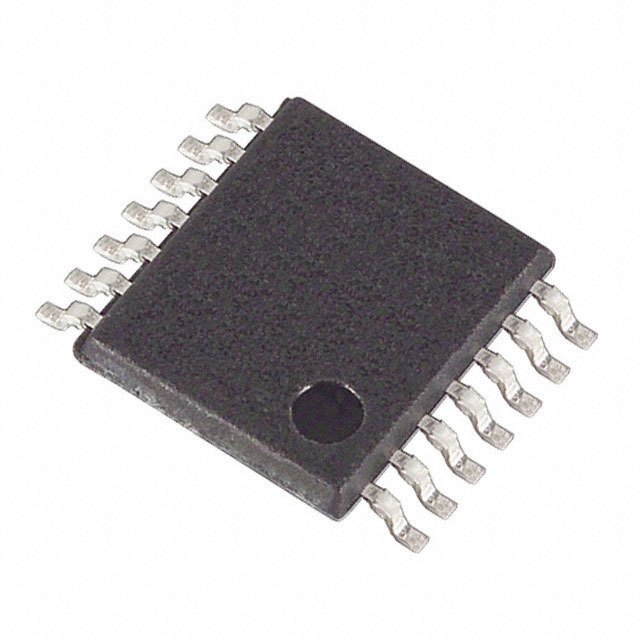

The is a low voltage, single supply quad SPST analogue switch in 14 pin TSSOP package. This device has fast switching speeds, handle rail to rail analogue signals and consume less than 1µW of quiescent power. The digital input is 1.8V CMOS compatible when using a single +3V supply. It is used in power routing, low voltage data acquisition systems, PCMCIA cards, modems and hard drives.

.

Supply voltage range is 1.6V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Maximum on-resistance is 2.5ohm at TA = +25°C single +1.8V supply

.

Maximum on-resistance match between channels is 0.25ohm at TA = +25°C single +1.8V supply

.

Maximum turn-on time is 35ns and maximum turn-off time is 25ns at TA=+25°C single +1.8V supply

.

Maximum charge injection is 8pC at TA = +25°C single +1.8V supply

.

Four normally open NO switches

.

High current-handling capacity 100mA continuous

.

Maximum on-resistance flatness is 0.1ohm at TA=+25°C single +3V supply
