MAX4891ETJ+

MAXIM INTEGRATED PRODUCTS  MAX4891ETJ+  芯片, 模拟开关

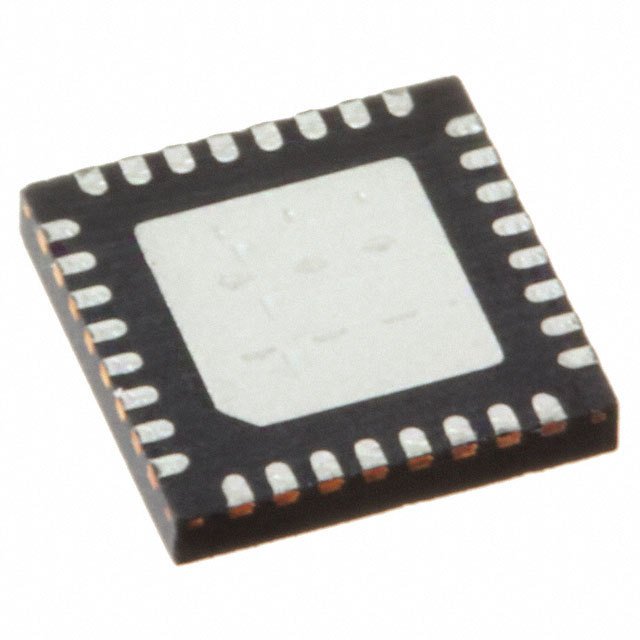

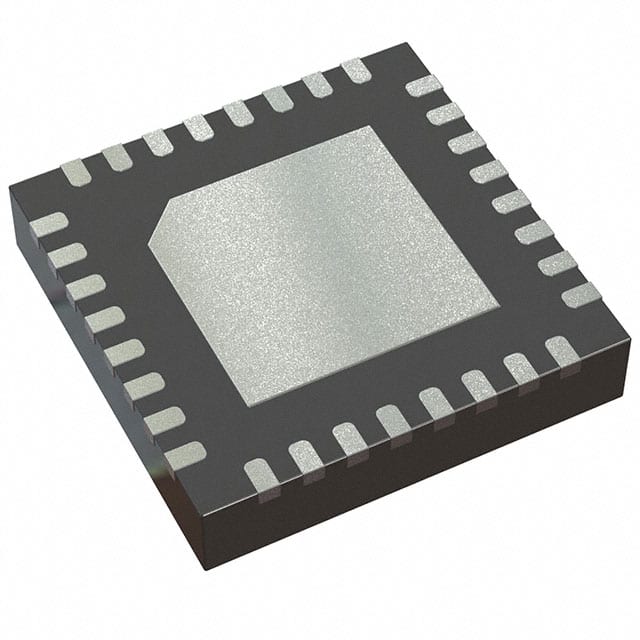

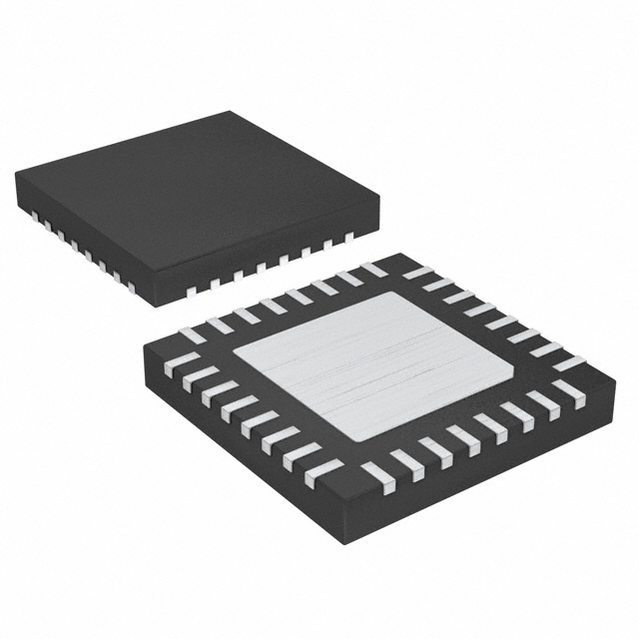

The is a 10/100/1000 base-T Ethernet LAN switch in 32 pin TQFN package. This device switch the signals from two interface transformers and connect signals to a single 10/100/1000 base-T Ethernet PHY, simplifying docking station design and reducing manufacturing costs. It can also route signals from a common interface transformer to two different boards in board redundancy applications. Switch provides an extremely low capacitance and on-resistance to meet Ethernet insertion and return-loss specifications. It is used in notebooks and docking stations, servers and routers with Ethernet interfaces, board level redundancy protection, SONET/SDH signal routing, T3/E3 redundancy protection and video switching.

.

Supply voltage range is 3V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Low on-resistance RON of 4ohm typ & 5.5ohm max at TA = +25°C

.

Ultra-low on-capacitance CON of 6.5pF typ

.

Low < 200ps bit to bit skew

.

1GHz -3dB bandwidth

.

Optimized pin-out for easy transformer and PHY interface

.

Low 450µA max quiescent current

.

One built-in LED switch for switching indicators to docking station

.

Bidirectional 8 to 16 multiplexer/demultiplexer
