MNR35J5RJ103

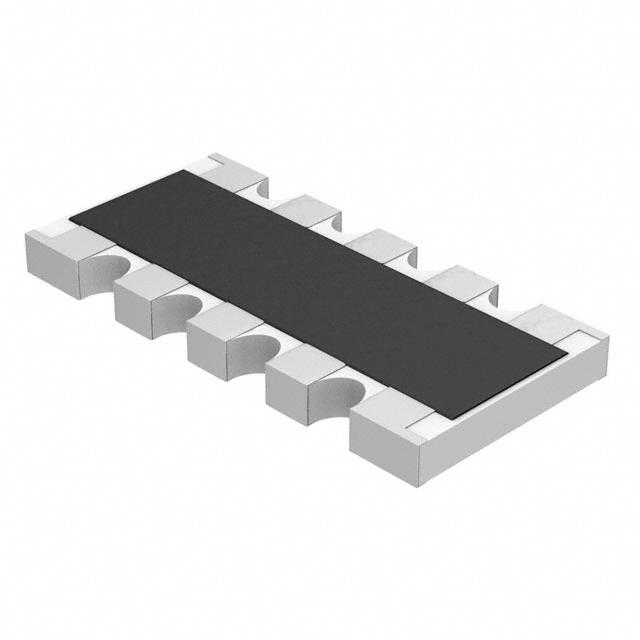

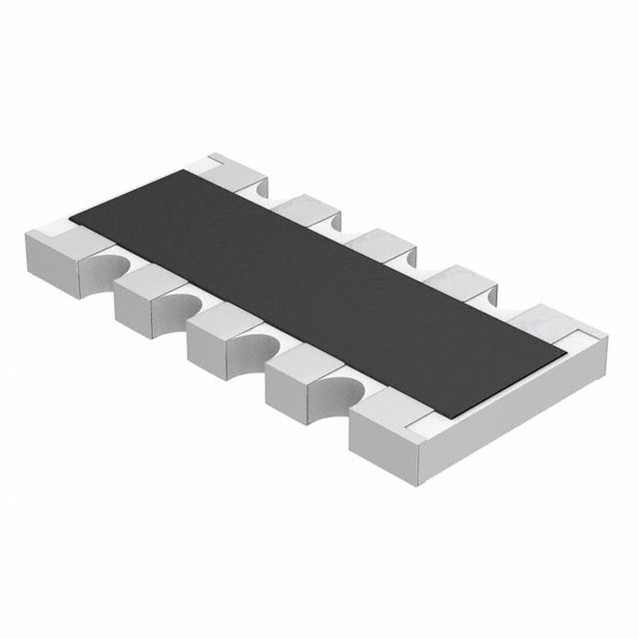

8个电阻排阻 MNR35J5RJ103 10.0kΩOhm 5（1206）-10K marking标记R103

值Resistance| 10.0kΩ/Ohm \---|--- 误差Tolerance| ±5% 电阻器数Number of Resistors| 8 引脚数Number of Pins| 10 功耗Power Dissipation| 62.5mW Description & Applications| Chip resistor networks MNR35 1206×5 size Features 1 Common terminals yield area 40% smaller than that of the MNR38. 2 8-element construction makes the MNR35 ideal for bus line pull-up / pull-down. 3 Convex electrodes Easy to check the fillet after soldering is finished. 4 Compatible with a wide range of mounting equipment. 5 ROHM resistors have approved ISO-9001 certification. 描述与应用| 片式电阻网络 MNR35（1206×5大小） 特点 1）面积比常见的终端MNR38小于40％。 2）8元的结构使得MNR35理想总线上拉/下拉。 3）凸电极 易焊接完成后，检查圆角。 4）具有广泛的安装设备兼容。 5）ROHM电阻已通过ISO-9001认证。
