ANALOG DEVICES MUX08FPZ 芯片, 多路复用器 8通道 SP JFET
MUX08、8 通道 JFET 模拟多路复用器、Analog Devices
JFET 开关,而不是 CMOS
过电压和电源损耗保护
低接通电阻:220 Ω
高度抗静电放电损坏
得捷:
IC MULTIPLEXER 8X1 16DIP
立创商城:
MUX08FPZ
欧时:
Analog Devices MUX08FPZ 多路复用器, 单 8:1, 16引脚 PDIP封装
e络盟:
芯片, 多路复用器 8通道 SP JFET
艾睿:
Analog Multiplexer Single 8:1 16-Pin PDIP N Tube
Jameco:
Analog Multiplexer Single 8:1 ±18 Volt 16-Pin PDIP
安富利:

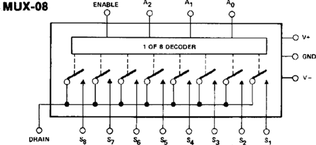

The MUX-08 is a monolithic eight-channel analog multiplexer which connects a single output to one of the eight analog inputs depending upon the state of a 3-bit binary address.The MUX-24 is a monolithic four-channel differential analog multiplexer configured in a double pole, four position plus OFF electronic switch array. A two-bit binary input address connects a pair of independent analog inputs from each four channel input section to the corresponding pair of independent analog outputs.All switches in the MUX-08/MUX-24 are turned OFF by applying logic "0" to the ENABLE pin, thereby providing a package select funtion.Fabricated with Precision Monolithics" high performance Bipolar-JFET technology, these devices offer low, constant "ON" resistance, low leakage currents and fast settling time with low crosstalk to satisfy a wide variety of applications.These multiplexors do not suffer from latch-up or static charge blow-out problems associated with similar CMOS parts. The digital inputs are designed to operate form both TTL and CMOS levels while always providing a definite break-before-make action without the need for external pull-up resistors over the full operating temperature range.
Chip1Stop:
Analog Multiplexer Single 8:1 16-Pin PDIP Tube
Verical:
Analog Multiplexer Single 8:1 16-Pin PDIP N Tube
Newark:
# ANALOG DEVICES MUX08FPZ Analog Multiplexer, 8:1, 1 Circuit, 300 ohm, 15 mA, ± 15V, DIP-16
Win Source:
1 Circuit IC Switch 8:1 300 Ohm 16-PDIP
输出接口数 1
触点类型 DPST-NC
供电电流 6 mA
电路数 1
通道数 8
针脚数 16
耗散功率 247 mW
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Through Hole
引脚数 16

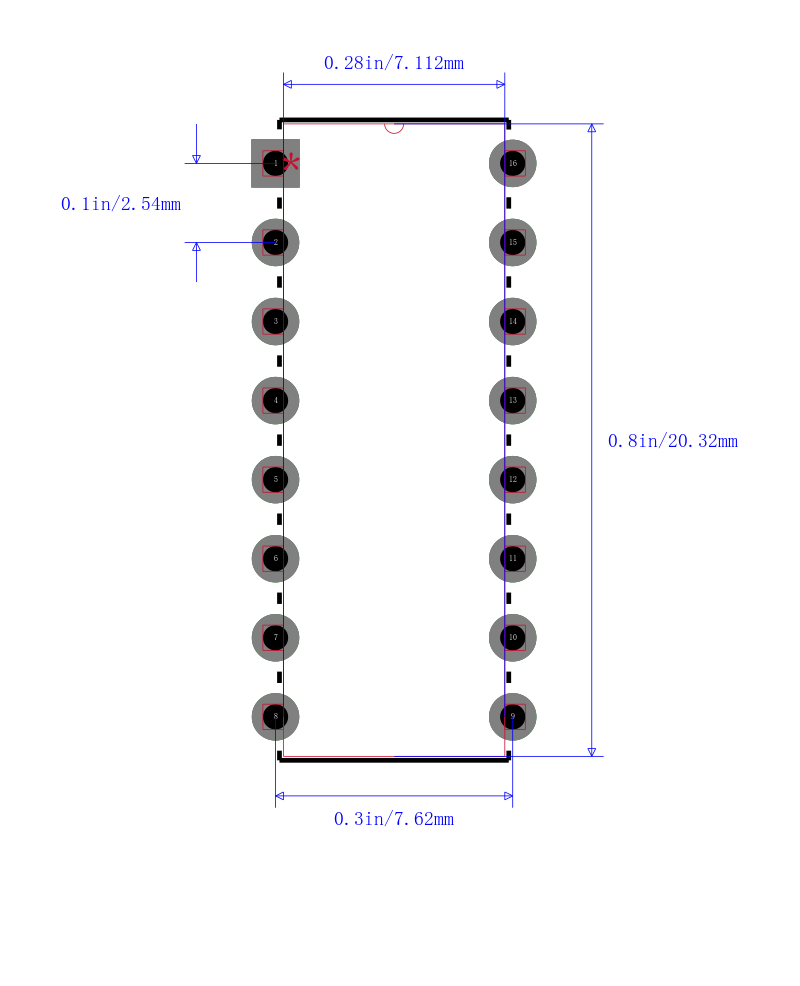

封装 PDIP-16
长度 20.07 mm
宽度 6.35 mm
高度 3.3 mm
封装 PDIP-16
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MUX08FPZ ADI 亚德诺 | 当前型号 | 当前型号 |
MUX08FP 亚德诺 | 类似代替 | MUX08FPZ和MUX08FP的区别 |
MPC508AP 德州仪器 | 功能相似 | MUX08FPZ和MPC508AP的区别 |
MUX08EPZ 亚德诺 | 功能相似 | MUX08FPZ和MUX08EPZ的区别 |
