MAX4996LETG+

MAXIM INTEGRATED PRODUCTS  MAX4996LETG+  模拟开关, 低电容, DPDT, 3 放大器, 4 ohm, 2.5V 至 5.5V, TQFN, 24 引脚

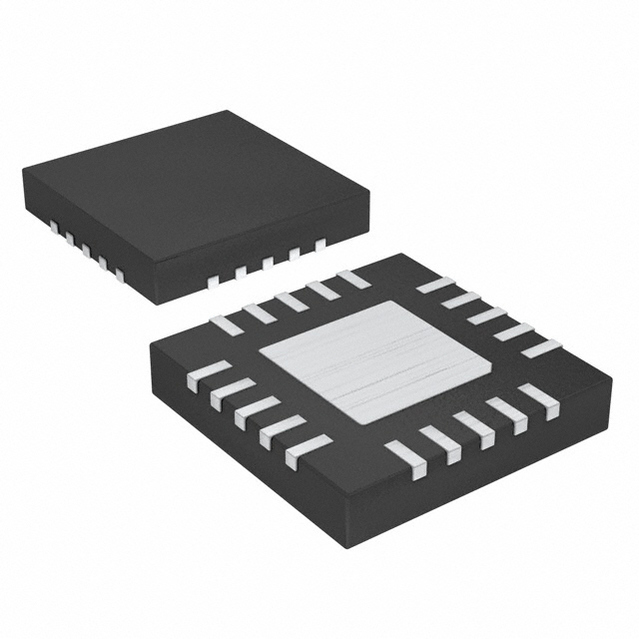

The is a triple DPDT, low capacitance data switch in 24 pin TQFN package. It features 2ohm typ on-resistance, low 6pF typ on-capacitance and low power supply current consumption. It combines low capacitance and low resistance necessary for high frequency switching applications in portable electronics. It has an active-low enable input EN - complementary to disable switches and three logic inputs to control switches in pairs. The enable input decreases supply current and also places the COM_ outputs in a high-impedance state. It also features a 5µA max supply current consumption when logic inputs are not rail to rail. This feature is especially valuable in applications where direct interface to low voltage processors is necessary. It is used in SD card switching, USB signal switching, UART signal switching, cell phones and PDAs.

.

Supply voltage range is 2.5V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

On state resistance is 4ohm max

.

Multiplex SD2.0/SDIO interfaces

.

Supply current at low power consumption is 2µA max

.

Rail to rail signal handling

.

Low capacitance switches of 6pF typ

.

Excellent on-resistance flatness over the range of 0V to VCC

.

Wide -3dB bandwidth, 670MHz

.

ESD protection, ±2KV human body model
