4通道摸拟开关
The MC74LVX4052 utilizes silicon-gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. This analog multiplexer/demultiplexer controls analog voltages that may vary across the complete power supply range from V The LVX4052 is similar in pinout to the high-speed HC4052A, and the metal-gate MC14052B. The Channel-Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off. The Channel-Select and Enable inputs are compatible with standard CMOS outputs; with pull-up resistors they are compatible with LSTTL outputs. This device has been designed so that the ON resistance R is more linear over input voltage than R on of metal-gate CMOS analog switches.
Features
---
|
电源电压DC 5.00 V
无卤素状态 Halogen Free
输出接口数 2
触点类型 SP4T
供电电流 40 µA
电路数 2
通道数 1
针脚数 16
耗散功率 0.5 W
带宽 80 MHz
输入数 8
工作温度Max 125 ℃
工作温度Min -55 ℃
3dB带宽 80 MHz
耗散功率Max 500 mW
电源电压 2.5V ~ 6V
电源电压Max 6 V
电源电压Min 2.5 V
安装方式 Surface Mount
引脚数 16

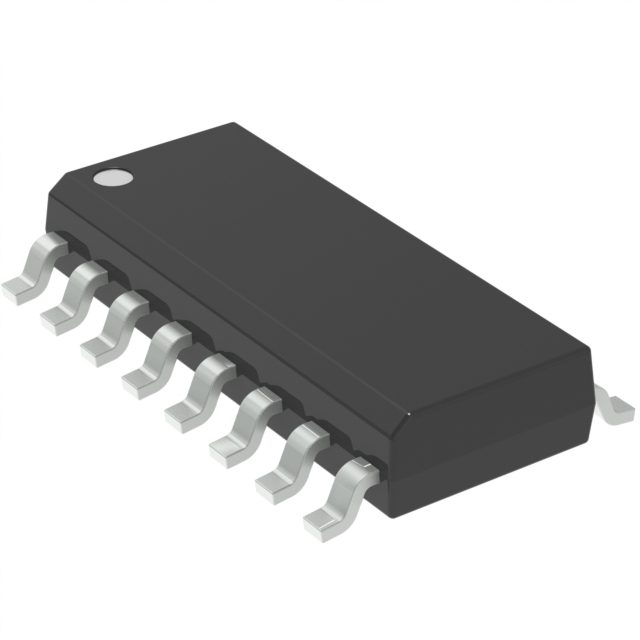

封装 SOIC-16
长度 9.9 mm
宽度 4 mm
封装 SOIC-16
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74LVX4052DR2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74HC4053ADG 安森美 | 类似代替 | MC74LVX4052DR2G和MC74HC4053ADG的区别 |
MC74HC4051ADWG 安森美 | 类似代替 | MC74LVX4052DR2G和MC74HC4051ADWG的区别 |
MC74VHC4051DR2G 安森美 | 类似代替 | MC74LVX4052DR2G和MC74VHC4051DR2G的区别 |
