M2019LL1G01

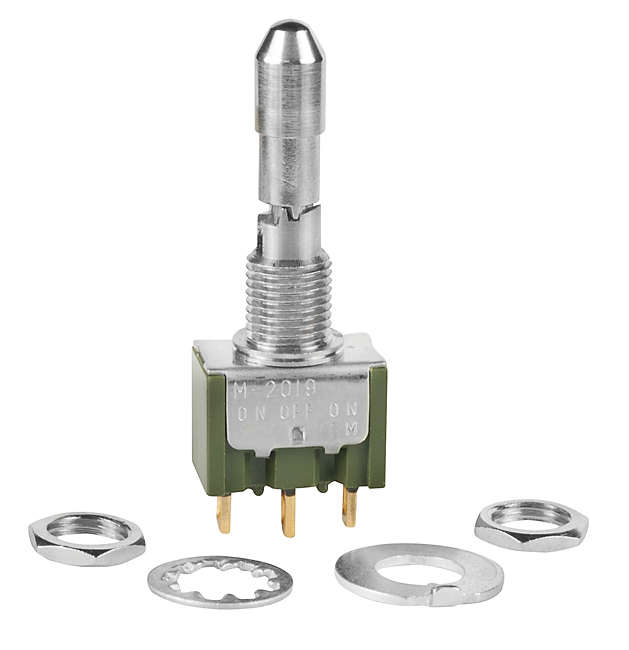

M2019LL1G01图片1

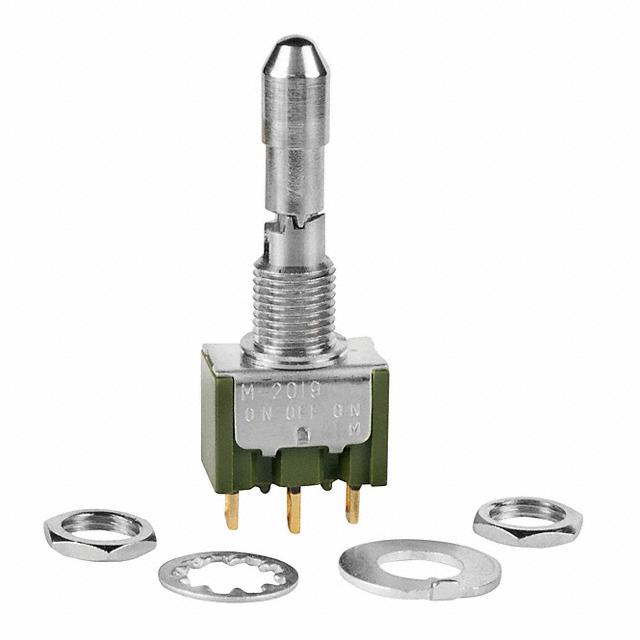

M2019LL1G01图片2
M2019LL1G01图片3
M2019LL1G01图片4
M2019LL1G01概述

拨动开关 ON-OFF-ON LKNG LVR 1/4" BSHING SLDR LUG

This toggle switch from Switches is the best at minimizing lag between switches in your design. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2019LL1G01 toggle switch has a solder lug termination style. This product is 13 mm long, 40.1 mm tall and 8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

M2019LL1G01中文资料参数规格
技术参数

触点电镀 Gold

额定电压DC 28 V

额定电压AC 28 V

排数 1

方向 Vertical

触点类型 SPDT

额定电流Max 0.1A @28VAC, 28VDC

工作温度Max 85 ℃

工作温度Min -30 ℃

接触电阻Max 20 mΩ

封装参数

安装方式 Panel, Solder Lug

外形尺寸

长度 13 mm

宽度 7.90 mm

高度 9.4 mm

物理参数

工作温度 -30℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买M2019LL1G01
型号: M2019LL1G01
制造商: NKK 日本长野
描述:拨动开关 ON-OFF-ON LKNG LVR 1/4" BSHING SLDR LUG
