MLF2012A1R0KT000

固定电感器

固定器

欧时:
Inductor SMD MLF 0805 1uH 80mA

立创商城:
1uH ±10% 150mΩ

得捷:
FIXED IND 1UH 80MA 300 MOHM SMD

艾睿:

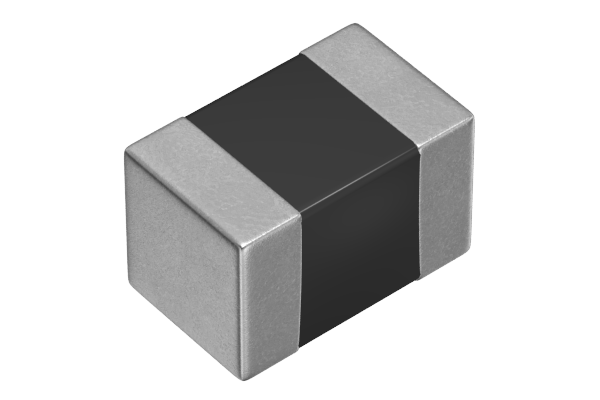

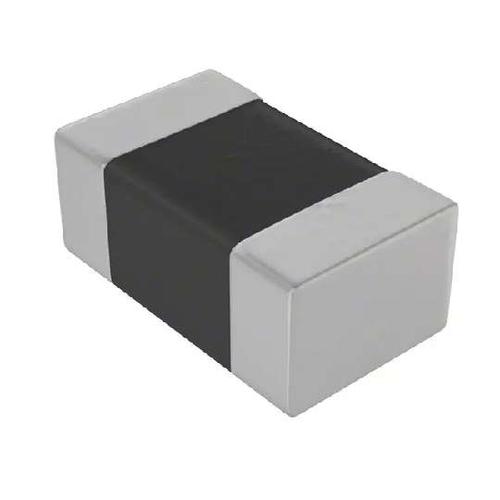

This rf chip MLF2012A1R0KT000 surface mount inductor from TDK is ideal for applications where space is a major influence of circuit design. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with multi-layer technology. It has an inductance of 1u H. This product is 2.2 mm long, 1.05 mm tall and 1.45 mm deep. It has a tolerance of 10%. Its test frequency is 10M Hz, while its minimum self-resonant frequency is 120M Hz. This SMD inductor has a maximum DC current of 80m A with a maximum resistance of 300m Ohm.

Chip1Stop:
Inductor RF Chip Shielded Multi-Layer 1uH 10% 10MHz 45Q-Factor Ferrite 80mA 300mOhm DCR 0805 Punched Paper T/R

Verical:
Inductor General Purpose Shielded Multi-Layer 1uH 10% 10MHz 45Q-Factor Ferrite 0.08A 0.3Ohm DCR 0805 T/R

Electro Sonic:
Inductor RF Chip Shielded Multi-Layer 1uH 10% 10MHz 45Q-Factor Ferrite 80mA 300mOhm DCR 0805 T/R

Win Source:
1μH Shielded Multilayer Inductor 80mA 300 mOhm Max 0805 2012 Metric
