MB2065SS1W01

NKK SWITCHES  MB2065SS1W01  按钮开关, SPDT, 开-开, 125 V, 30 V, 6 A, 焊接

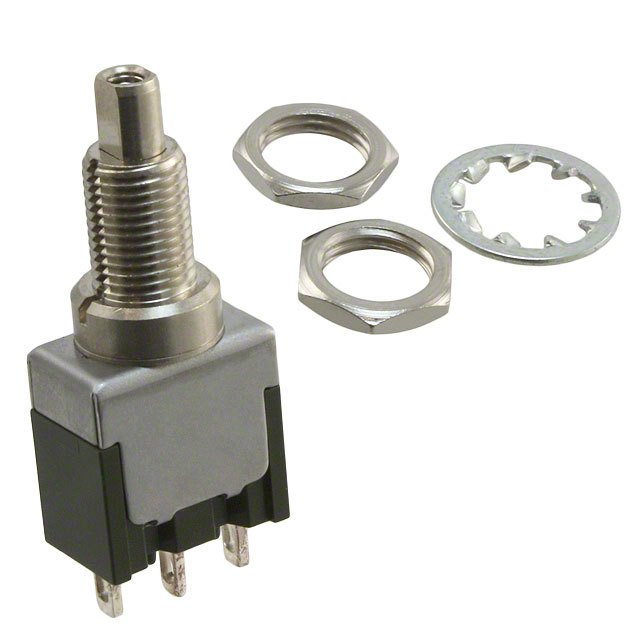

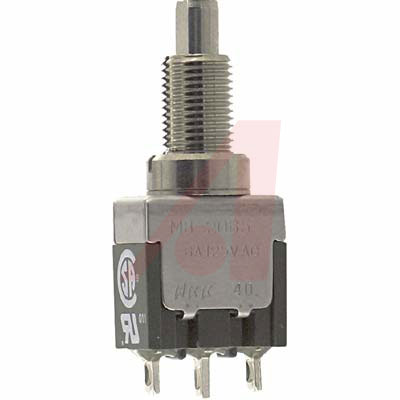

The is a single-pole double-throw SPDT miniature Pushbutton Switch with solder lug terminals, ON-ON function, 0.335-inch 8.5mm threaded with keyway bushings and plunger for screw-on caps. The MB2000 series pushbutton switch has stainless steel frame, brass with nickel plating bushing and diallyl phthalate resin UL94V-0 case. The guide interlocked with actuator block prevents window locking and maintains correct plunger alignment to assure contact stability. The high torque bushing construction prevents rotation or separation from frame during installation. The high insulating barriers, formed in the moulded diallyl phthalate case, increase isolation of circuits in multi-pole devices.

.

Prominent external insulating barriers increase insulation resistance and dielectric strength

.

Epoxy sealed terminals prevent entry of solder flux and other contaminants

.

10mR Maximum contact resistance

.

1000MR at 500VDC Minimum insulation resistance

.

-30 to +85°C Operating temperature range
