Switch Push Button ON ON SPDT Round Plunger 6A 250VAC 30VDC Alternate Contact Solder Lug Panel Mount
Series MB2000 miniature pushbutton switches are designed with an all metal switch action to ensure a 100,000 minimum mechanical life and a resin case to provide isolation between circuits. Although not process sealed Series MB2000 miniature pushbutton switches do have epoxy sealed terminals to prevent entry of solder flux, and other liquid agents, into the switch action.
艾睿:

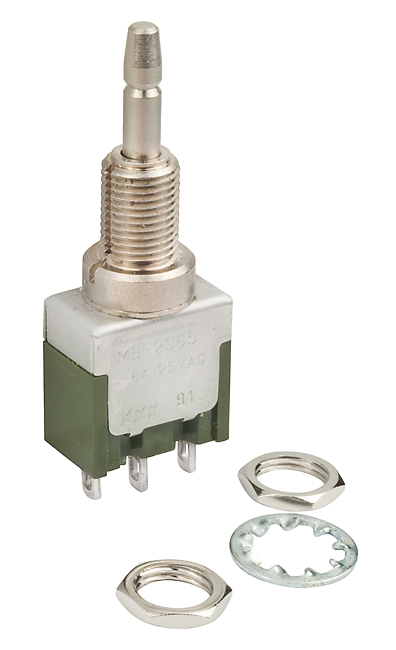

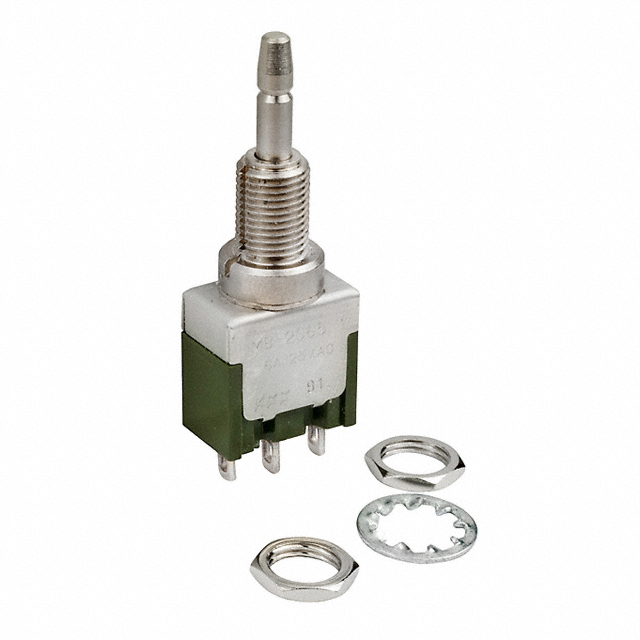

Have complete control of the state of your design by implementing this MB2065LS1W01 push button switch from NKK Switches. This device has a maximum current rating of 6 A @ 125VAC. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The MB2065LS1W01 push switch has a solder lug termination style. This product is 13 mm long, 39.4 mm tall and 7.9 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
Verical:
Switch Push Button ON ON SPDT Round Plunger 6A 250VAC 30VDC Alternate Contact Solder Lug Panel Mount
Powell:
SPDT ON-ON SNAP-ON PLUNGER .335" THREADED BUSHING 6A @ 125V AC SOLDER LUG
