MP0012/1

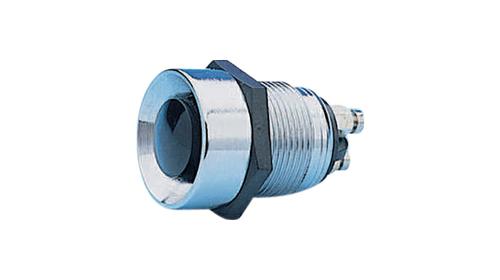

MP0012/1图片1

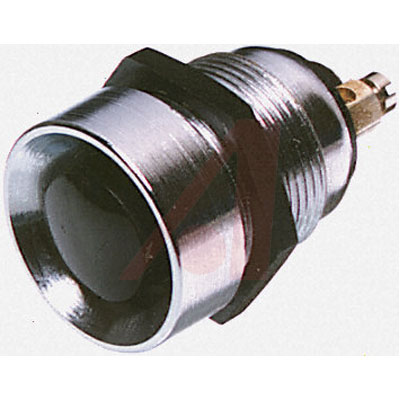

MP0012/1图片2
MP0012/1图片3
MP0012/1图片4
MP0012/1图片5
MP0012/1图片6
MP0012/1概述

Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Screw Panel Mount

**SPDT, with high collar**

Plastic button, black.Chrome-plated housing, with high collar, protects against accidental activation. Press contact.


欧时:
Brass Chrome Plated Push Button Switch B


立创商城:
MP0012/1


贸泽:
Pushbutton Switches Push Button Switch


艾睿:
Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Panel Mount Screw Bulk


Allied Electronics:
Push Button Switch, 19.2mm, SP-NO, Panel Mount, Momentary


Chip1Stop:
Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Screw Panel Mount


Verical:
Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Panel Mount Screw Bulk


MASTER:
Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Screw Panel Mount


Online Components:
Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Screw Panel Mount


Electro Sonic:
Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Screw Panel Mount


MP0012/1中文资料参数规格
技术参数

额定电压DC 12 V

额定电压AC 125 V

额定电流 2 A

排数 1

额定电流Max 2 A

工作温度Max 85 ℃

工作温度Min -20 ℃

额定电压 110 VAC

额定电压DC Max 12 V

额定电压AC Max 250 V

接触电阻Max <15 mΩ

封装参数

安装方式 Panel

封装 -

外形尺寸

高度 35 mm

封装 -

物理参数

触点材质 Brass

工作温度 -20℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8536509031

数据手册

在线购买MP0012/1
型号: MP0012/1
制造商: Bulgin Components 布尔金原器件
描述:Switch Push Button N.O. SPST Flush Round Button 2A 250VAC 12VDC Momentary Contact Screw Panel Mount
