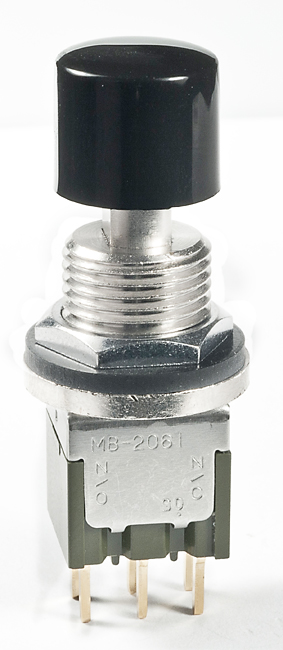

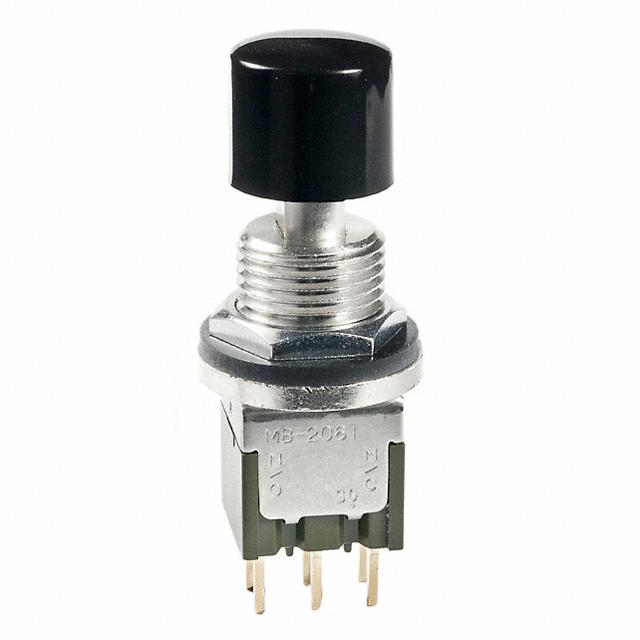

MB2061SB3G03-DA

Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole

Series MB2000 miniature pushbutton switches are designed with an all metal switch action to ensure a 100,000 minimum mechanical life and a resin case to provide isolation between circuits. Although not process sealed Series MB2000 miniature pushbutton switches do have epoxy sealed terminals to prevent entry of solder flux, and other liquid agents, into the switch action.

得捷:
SWITCH PUSH DPDT 0.4VA 28V

立创商城:
MB2061SB3G03-DA

贸泽:
Pushbutton Switches ONON 12MM SPLSHPRF BSHG PC .520 BLK CAP

艾睿:
Ideal for quick switching situations this MB2061SB3G03-DA push button switch manufactured from NKK Switches is a must. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DPDT configuration. This push switch has an operating temperature range of -30 °C to 85 °C. The MB2061SB3G03-DA push switch has a PC pin termination style. This product is 13.2 mm long, 46.35 mm tall and 13.2 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
MINIATURE PUSHBUTTON/MULTI-FUNCTION

Chip1Stop:
Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole

Verical:
Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole

Powell:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
