MAX1470EUI+

MAXIM INTEGRATED PRODUCTS  MAX1470EUI+  芯片, 射频接收器, SUB 2.4GHZ

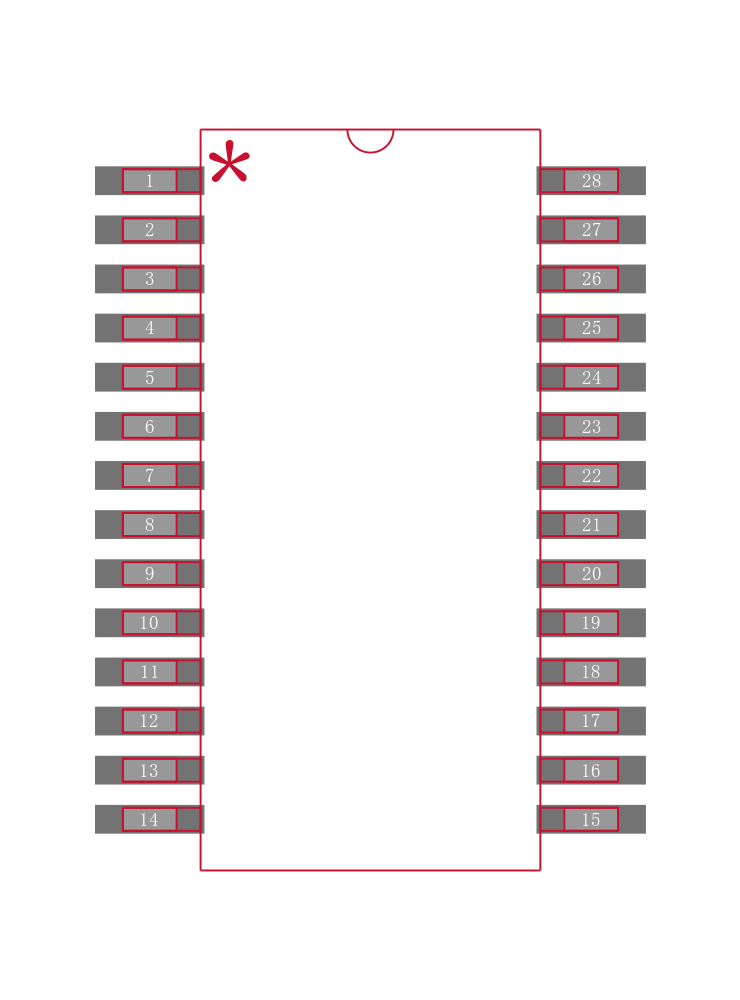

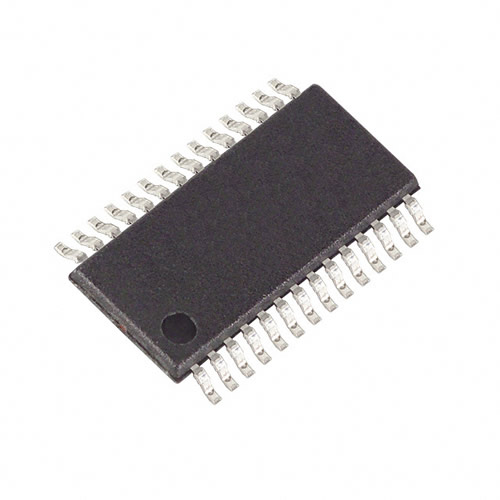

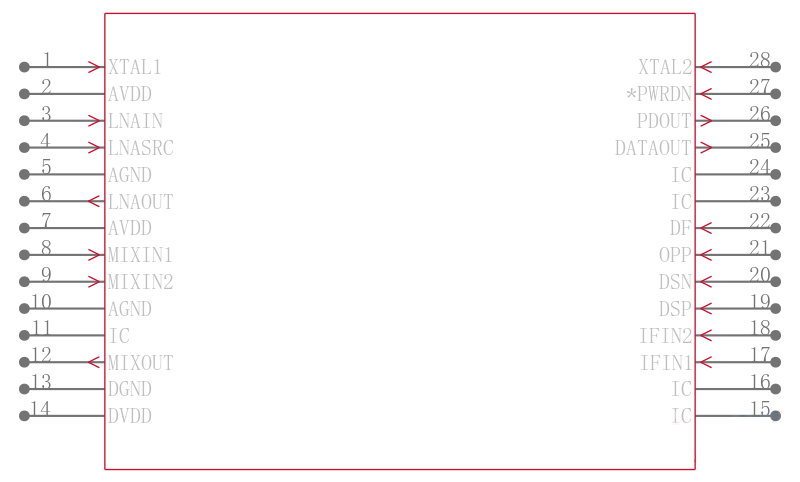

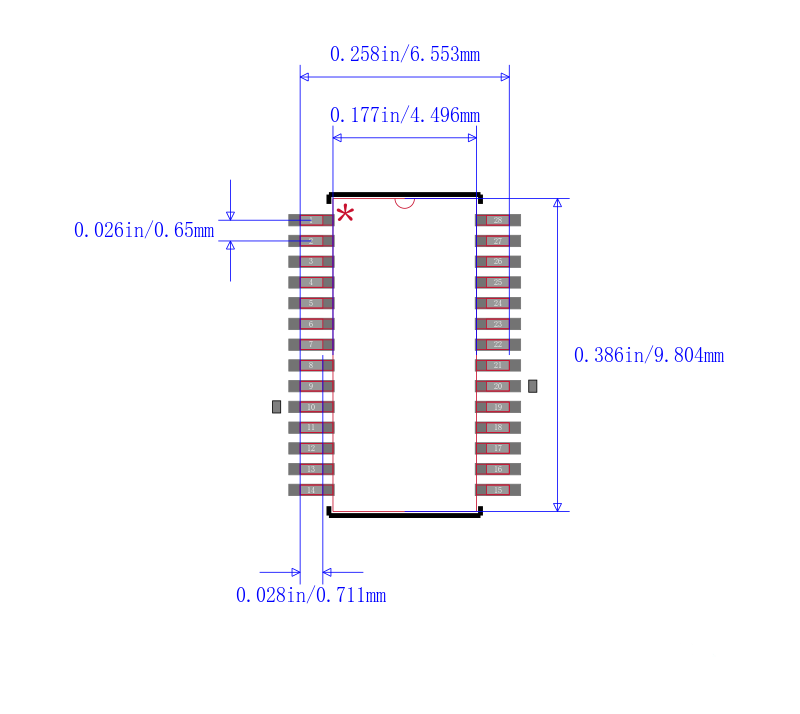

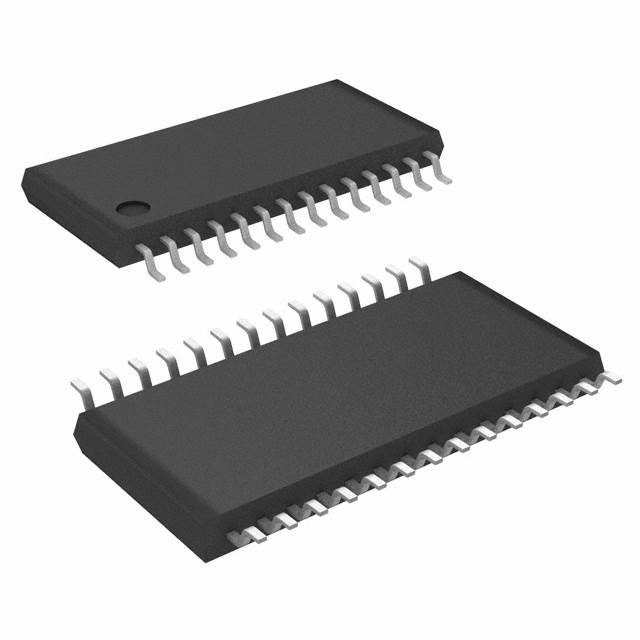

The is a 315MHz low power, +3V super heterodyne receiver in 28 pin TSSOP package. It is a fully integrated low power CMOS superheterodyne receiver for use with amplitude-shift keyed ASK data in the 315MHz band. With few required external components and a low-current power-down mode, it is ideal for cost and power sensitive applications in the consumer markets. The chip consists of a 315MHz low-noise amplifier LNA, an image rejection mixer, a fully integrated 315MHz phase-lock-loop PLL, a 10.7MHz IF limiting amplifier stage with received-signal strength indicator RSSI and an ASK demodulator and analogue base band data-recovery circuitry.

.

Supply voltage range is 3V to 3.6V

.

Operating temperature range from -40°C to 85°C

.

Built-in 53dB RF image rejection

.

Start-up time is 250µs

.

Low operating supply current is 5.5mA

.

1.25µA low-current power-down mode for efficient power cycling

.

250MHz to 500MHz operating band

.

Integrated PLL with on-board voltage-controlled oscillator VCO and loop filter

.

Selectable IF bandwidth through external filter

.

Complete receive system from RF to digital data out
