按钮开关 ONON 12MM BUSHING SOLDER .520 BLK CAP
Series MB2000 miniature pushbutton switches are designed with an all metal switch action to ensure a 100,000 minimum mechanical life and a resin case to provide isolation between circuits. Although not process sealed Series MB2000 miniature pushbutton switches do have epoxy sealed terminals to prevent entry of solder flux, and other liquid agents, into the switch action.
得捷:
SWITCH PUSH DPDT 0.4VA 28V
立创商城:
MB2061SB1G01-DA
贸泽:
按钮开关 ONON 12MM BUSHING SOLDER .520 BLK CAP
艾睿:

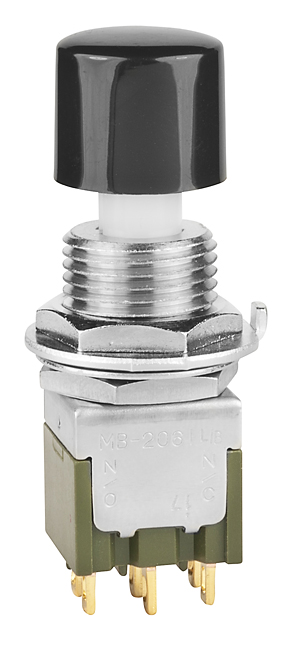

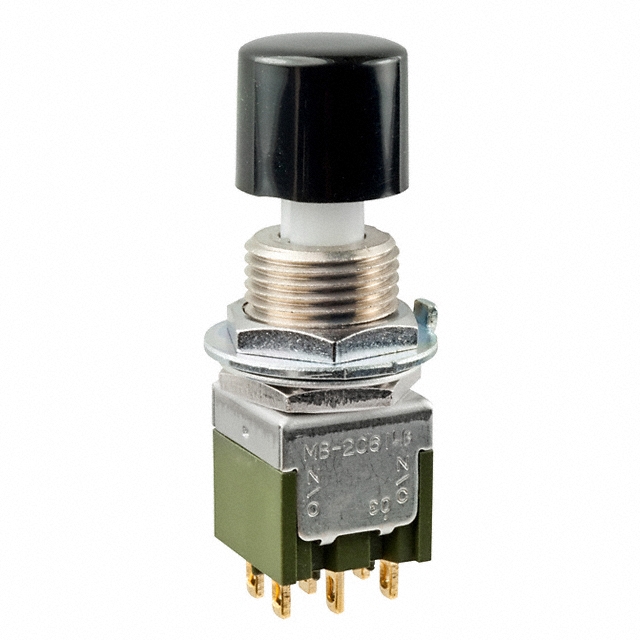

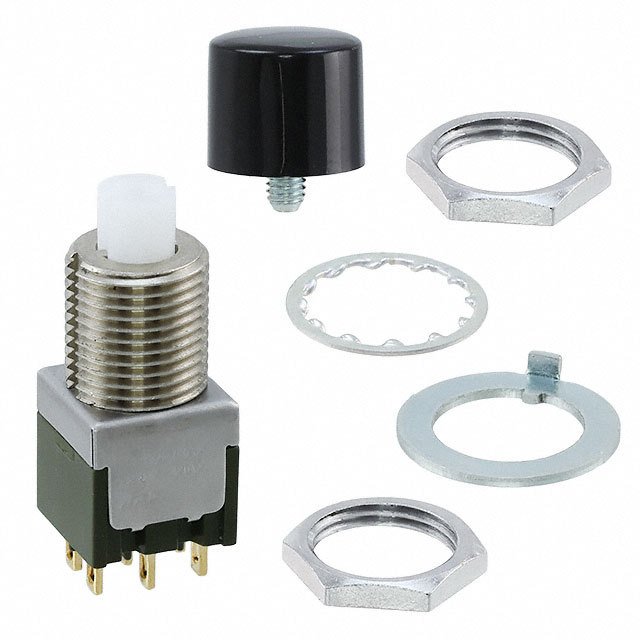

Never worry about turning off components or cutting off certain sections of a circuit with this MB2061SB1G01-DA push button switch from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a DPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The MB2061SB1G01-DA push switch has a solder lug termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 13.2 mm long, 44.5 mm tall and 13.2 mm deep.
Allied Electronics:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
Chip1Stop:
Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
Verical:
Switch Push Button ON ON DPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact Solder Lug Panel Mount
Powell:
MINIATURE PUSHBUTTON/MULTI-FUNCTION
额定电压DC 28 V
额定电压AC 28 V
额定电流 0.0142 A
排数 2
额定功率 0.4 VA
额定电流Max 0.1A @28VAC, 28VDC
额定功率Max 0.4 W
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VAC
接触电阻Max 20 mΩ
安装方式 Solder Lug, Panel
封装 -
长度 13.2 mm
宽度 13.2 mm
高度 44.5 mm
封装 -
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
