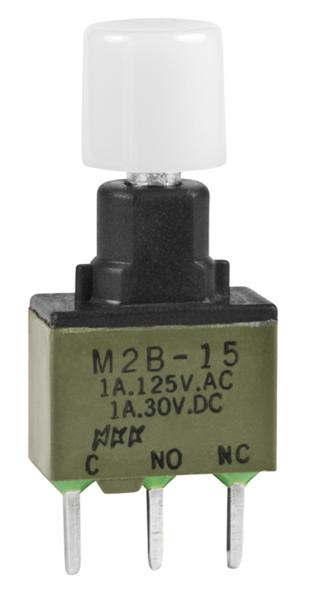

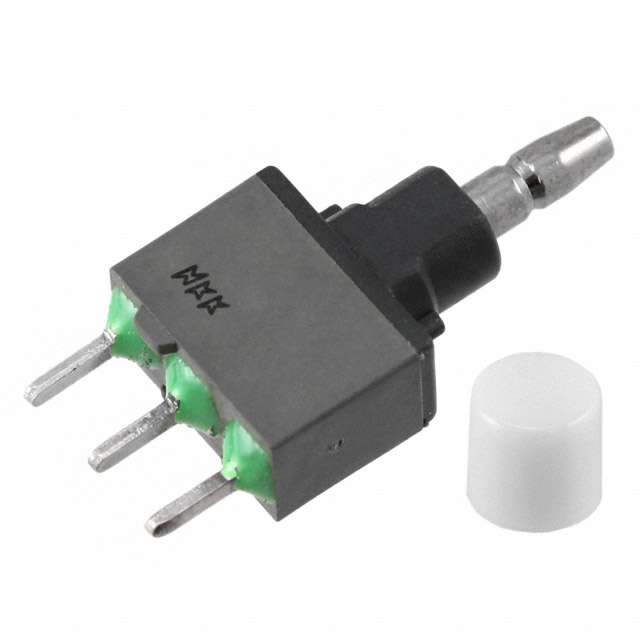

Switch Push Button ON ON SPDT Round Plunger 1A 125VAC 30VDC Momentary Contact PC Pins Thru-Hole
Series M2 process sealed miniature pushbuttons have upper and lower case halves ultrasonically welded together plus epoxy sealed terminals and an o-ring seal at the top of the bushing to prevent entry of flux, solvents and other contaminants during build processes. The sealed construction lends itself to real world applications too.
立创商城:
M2B15BA5W03-BB
艾睿:
Have complete control of the state of your design by implementing this M2B15BA5W03-BB push button switch from NKK Switches. This device has a maximum current rating of 1 A @ 125VAC 30VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2B15BA5W03-BB push switch has a PC pin termination style. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 30 VDC. This product is 12.7 mm long, 25.6 mm tall and 6.6 mm deep.
Allied Electronics:
SWITCH PUSHBUTTON SPDT 1A 125V
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 1A 125VAC 30VDC Momentary Contact PC Pins Thru-Hole
Verical:
Switch Push Button ON ON SPDT Round Plunger 1A 125VAC 30VDC Momentary Contact PC Pins Thru-Hole
Powell:
MINIATURE PUSHBUTTON/PC
