MAC12NG

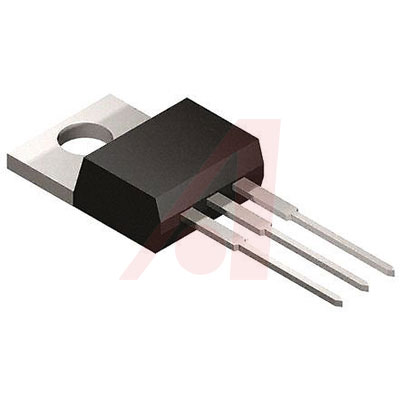

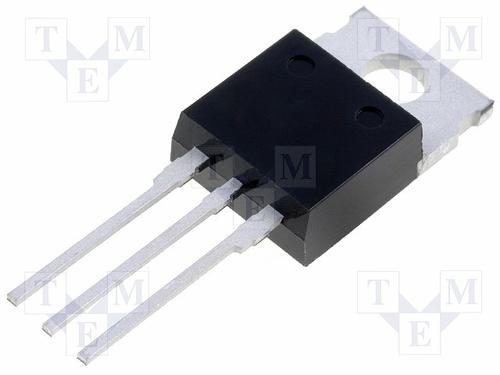

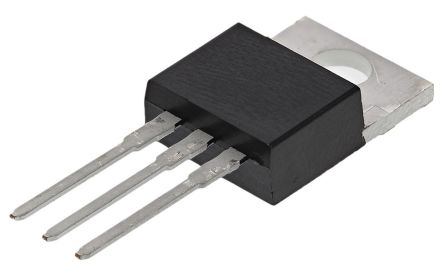

ON SEMICONDUCTOR  MAC12NG  三端双向可控硅, 800 V, 35 mA, 16 W, 1.5 V, TO-220AB, 100 A 新

The is a Silicon Bidirectional Thyristor/Triac designed for high performance full-wave AC control applications where high noise immunity and commutating di/dt are required. Uniform gate trigger currents in three quadrants, Q1, Q2 and Q3.

.

Blocking voltage to 800V

.

High immunity to dv/dt 250V/s minimum at 125°C

.

High commutating di/dt 6.5A/ms Minimum at 125°C

.

High surge current capability

.

0.35W Average gate power

.

2.2°C/W Thermal resistance, junction-to-case
