MAC15A8G

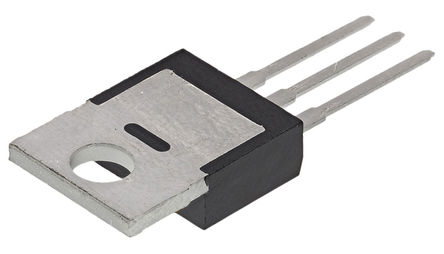

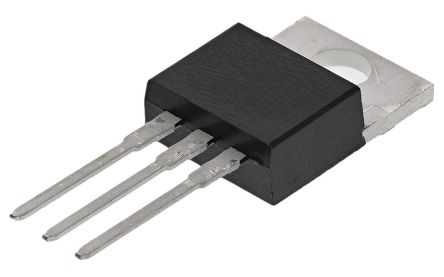

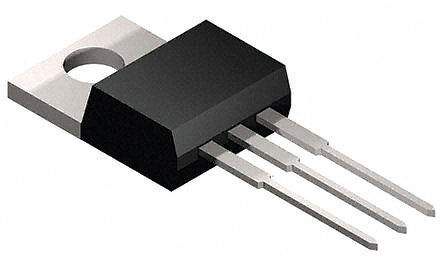

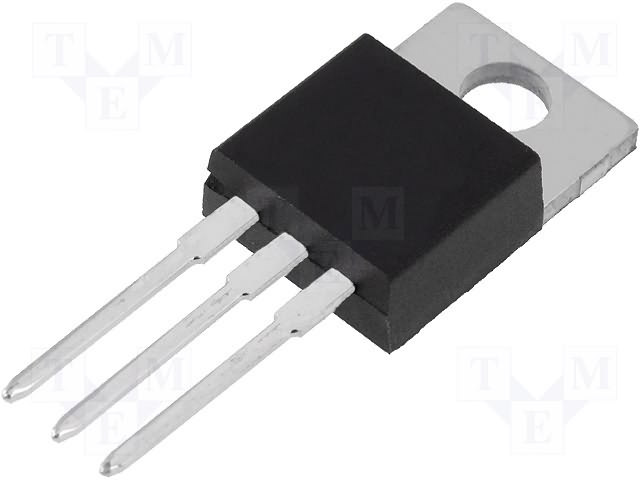

ON SEMICONDUCTOR  MAC15A8G  三端双向可控硅, 600 V, 50 mA, 20 W, 2 V, TO-220AB, 150 A

The is a TRIAC designed primarily for full-wave AC control applications or wherever full-wave silicon gate controlled solid-state device is needed. This silicon bidirectional thyristor switches from a blocking to a conducting state for either polarity of applied main terminal voltage with positive or negative gate triggering.

.

Blocking voltage to 800V

.

All diffused and glass passivated junctions for greater parameter uniformity and stability

.

Small, rugged, thermowatt construction low thermal resistance, high heat dissipation & durability

.

Gate triggering guaranteed in four modes
