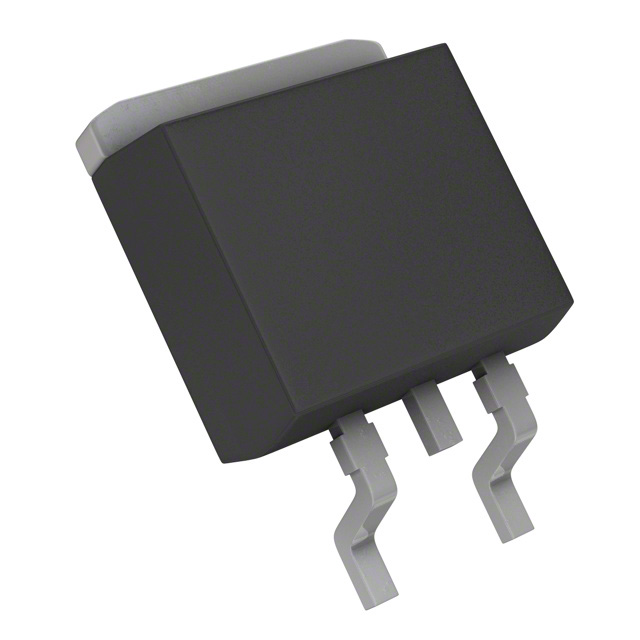

ON SEMICONDUCTOR MCR703AT4G 晶闸管, 100 V, 25 µA, 2.6 A, 4 A, TO-252, 3 引脚
The is a PNPN sensitive gate Silicon Controlled Rectifier SCR designed for high volume and consumer applications.
- .
- Reverse blocking thyristor
- .
- Passivated die for reliability and uniformity
- .
- Low level triggering and holding characteristics
- .
- UL94V-0 Flammability rating
- .
- 3B > 8000V Human body model, C > 400V machine model - ESD ratings
- .
- Recommend electrical replacement for C106
额定电压DC 100 V
额定电流 4.00 A
无卤素状态 Halogen Free
针脚数 3
保持电流 5 mA
保持电流Max 5 mA
工作温度Max 110 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 110℃
安装方式 Surface Mount
引脚数 3
封装 TO-252-3
高度 2.38 mm
封装 TO-252-3
工作温度 -40℃ ~ 110℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Consumer Electronics, Automation & Process Control, Industrial, Lighting, Thermal Management, Sensing & Instrumentation
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MCR703AT4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MCR703ARL 安森美 | 功能相似 | MCR703AT4G和MCR703ARL的区别 |
