MAC228A8G

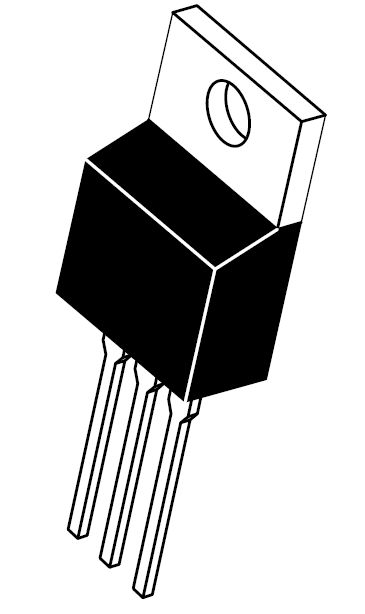

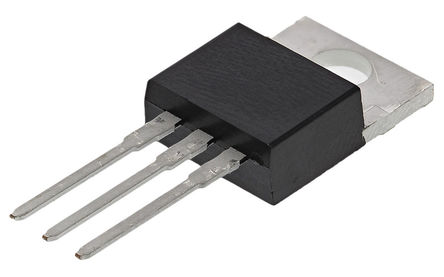

ON SEMICONDUCTOR  MAC228A8G  三端双向可控硅, 600 V, 10 mA, 20 W, 2.5 V, TO-220AB, 80 A 新

The is a Silicon Bidirectional Thyristor/Sensitive Gate Triac designed primarily for industrial and consumer applications. It is suitable for full-wave control of AC loads such as appliance controls, heater controls, motor controls and other power switching applications. Sensitive gate triggering in 3 modes for AC triggering on sinking current sources. It has small, rugged Thermowatt construction for low thermal resistance and high heat dissipation.

.

Four mode triggering for drive circuits that source current

.

All diffused and glass passivated junctions for parameter uniformity and stability

.

Center gate geometry for uniform current spreading

.

±10V Peak gate voltage

.

0.5W Average gate power

.

±2A Peak gate current

.

2°C/W Thermal resistance, junction-to-case
