分集调谐器, 6MHz ISDB-T与6MHz/7MHz/8MHz DVB-T, 2.7V至3.47V, TQFN-56
The is a ISDB-T/DVB-T diversity tuner in 56 pin TQFN package. This low power, 6MHz ISDB-T and 6MHz/7MHz/8MHz DVB-T low IF diversity tuner directly converts broadcast ISDB-T and DVB-T signals to a low-IF using a broadband I/Q downconverter. The operating frequency range covers VHF and UHF broadcast TV bands from 90MHz to 862MHz. It integrates LNAs, RF variable gain amplifiers VGAs, VHF and UHF tracking filters, I/Q downconverting mixers, baseband VGAs and low-IF filters. The device also includes a fully monolithic VCO and tank circuit as well as a complete frequency synthesizer including an on-chip crystal oscillator and output buffer/divider. The device incorporates a 2-wire I²C serial control interfaces with multiple read and write addresses. A low-power standby mode is available whereupon the signal path is shut down while leaving the serial control interfaces and register circuits active. Additionally, entire device can be shut down by an external pin.
电源电压DC 2.70V min
针脚数 56
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.7V ~ 3.47V
电源电压Max 3.47 V
电源电压Min 2.7 V
引脚数 56

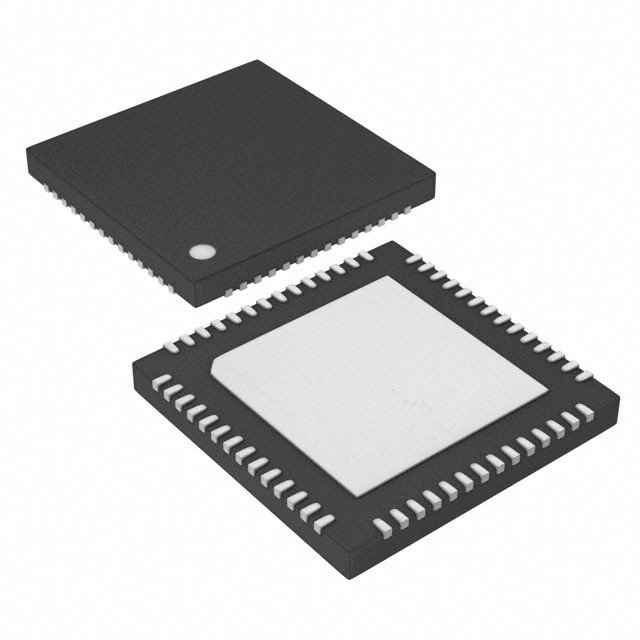

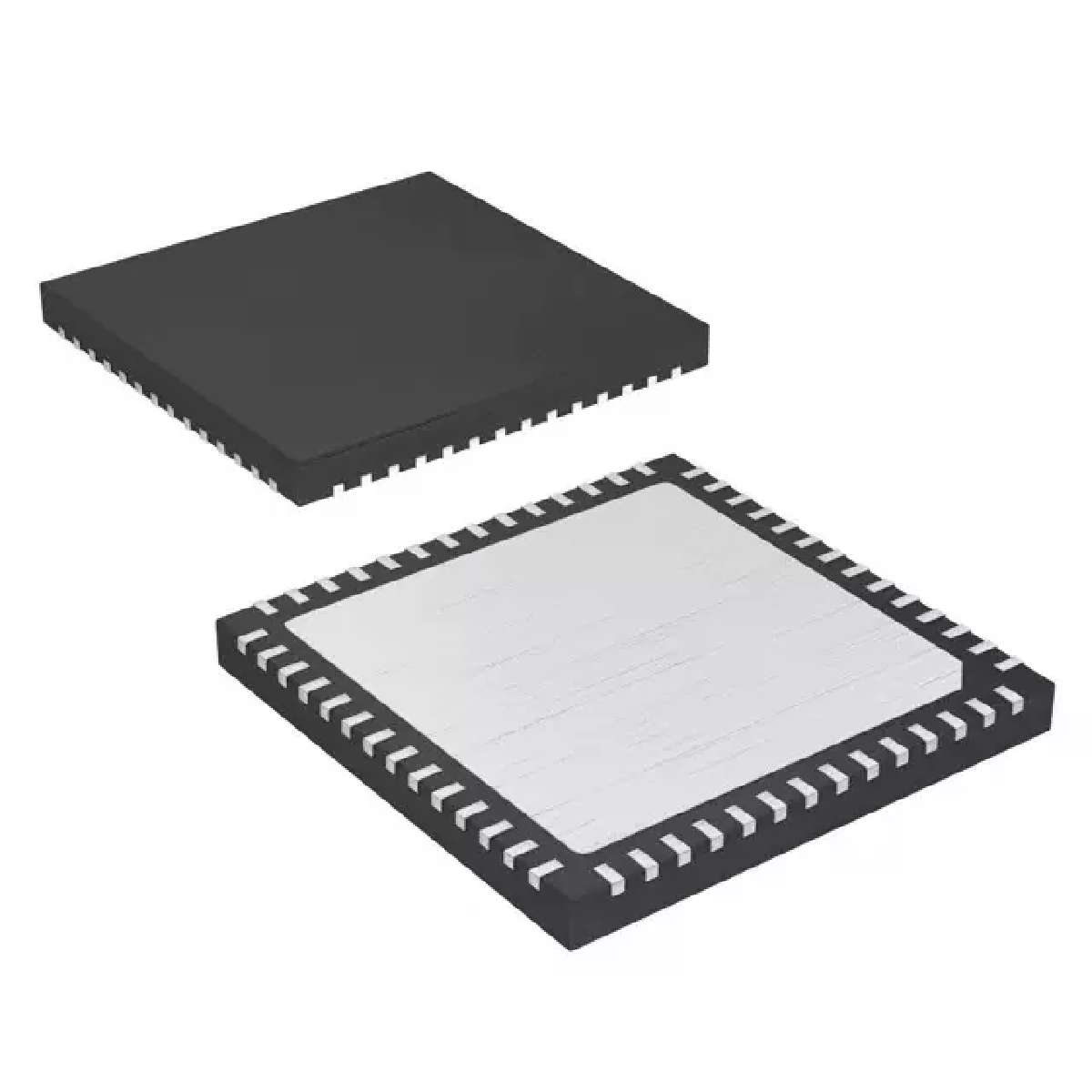

封装 TQFN-56
封装 TQFN-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Consumer Electronics, Signal Processing, 便携式器材, Automotive, 信号处理, Portable Devices, 消费电子产品, 车用, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX2135AETN/V+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX2135AETN/V+ 美信 | 类似代替 | MAX2135AETN/V+T和MAX2135AETN/V+的区别 |
MAX2135AETN+T 美信 | 类似代替 | MAX2135AETN/V+T和MAX2135AETN+T的区别 |
