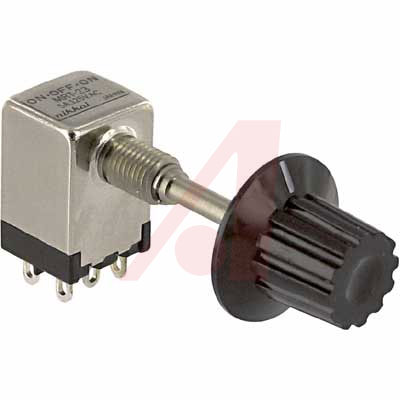

NKK SWITCHES MRT23-A 旋转开关, 2P, 3路, 3A, 30V
Need more than two positions for your switch? Then this rotary switch from Switches is perfect for you. This device has a maximum current rating of 5 A @ 125VAC. It has a DPDT configuration. This rotary limit switch has a minimum operating temperature of -10 °C and a maximum of 70 °C. The MRT23-A rotary limit switch has a solder lug termination style. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 30 VDC. This product is 13 mm long, 24 mm tall and 44 mm deep.
额定电压DC 125 V
额定电流 2.00 A
绝缘电阻 100 MΩ
触点类型 DPDT
针脚数 3
额定电流Max 5A @125VAC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压 125 VAC
接触电阻Max 10 mΩ
安装方式 Solder Lug
封装 -
长度 13 mm
宽度 44 mm
高度 24 mm
封装 -
颜色 Black
触点材质 Silver Alloy
外壳材质 Nickel Plated Brass
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
