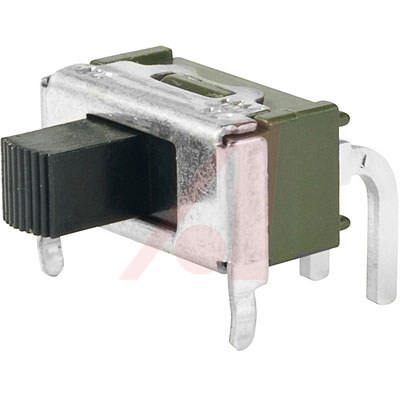

MS12ASW30

MS12ASW30图片1
MS12ASW30图片2
MS12ASW30图片3
MS12ASW30图片4
MS12ASW30图片5
MS12ASW30图片6
MS12ASW30图片7
MS12ASW30图片8
MS12ASW30图片9
MS12ASW30概述

NKK SWITCHES  MS12ASW30  滑动开关, SPDT, 6A, 250V, 面板安装

Series MS miniature slides are designed to give a choice of form factors for horizontal/vertical deployment on pcb or panel. There is also a choice between logic-level or power contacts to better match the switch to circuit applications. When matched with a logic-level or power circuit as intended, the results do not produce hazardous energy. UL, cULus and CSA recognized only when ordered with marking on the switch. Add "/U", "/CUL" or "/C" to end of part number to order UL recognized or CSA certified switch.

MS12ASW30中文资料参数规格
技术参数

额定电压AC 125V, 250V

额定电流 6 A

绝缘电阻 1000 Ω

排数 1

方向 Right Angle

触点类型 SPDT

接触电阻 10 mΩ

额定电流Max 6A @125VAC

工作温度Max 85 ℃

工作温度Min -30 ℃

额定电压 125 VAC

接触电阻Max 10 mΩ

封装参数

安装方式 Through Hole

外形尺寸

长度 13.6 mm

宽度 15.87 mm

高度 7.11 mm

物理参数

触点材质 Copper

工作温度 -30℃ ~ 85℃

其他

产品生命周期 25000 Cycles

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

海关信息

ECCN代码 EAR99

数据手册

在线购买MS12ASW30
型号: MS12ASW30
制造商: NKK 日本长野
描述:NKK SWITCHES  MS12ASW30  滑动开关, SPDT, 6A, 250V, 面板安装
替代型号MS12ASW30
型号/品牌 代替类型 替代型号对比

MS12ASW30

NKK 日本长野

当前型号

当前型号

1101M2S3ABE2

C&K Components

功能相似

MS12ASW30和1101M2S3ABE2的区别
