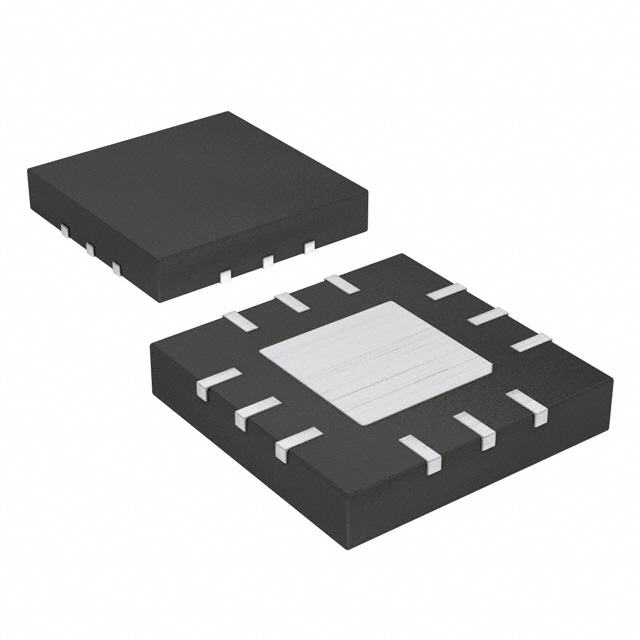

MAX16127TC+T

Power Supply Support Circuit, Adjustable, 1Channel, BICMOS, 3 X 3MM, ROHS COMPLIANT, TQFN-12

Load Dump, Voltage Protection PMIC 12-TQFN 3x3

得捷:
IC LOAD DUMP REV V PROT 12TQFN

立创商城:
MAX16127TC+T

安富利:
The MAX16126/MAX16127 load-dump/reverse-voltage protection circuits protect power supplies from damaging input voltage conditions, including overvoltage, reverse-voltage, and high-voltage transient pulses. Using a built-in charge pump, the devices control two external back-to-back n-channel MOSFETs that turn off and isolate downstream power supplies during damaging input conditions, such as an automotive load-dump pulse or a reverse-battery condition. Operation is guaranteed down to 3V to ensure proper operation during automotive cold-crank conditions. These devices feature a flag output active-low FLAG that asserts during fault conditions.For reverse-voltage protection, external back-to-back MOSFETs outperform the traditional reverse-battery diode, minimizing the voltage drop and power dissipation during normal operation.The MAX16126/MAX16127 use external resistors to adjust the overvoltage and undervoltage comparator thresholds for maximum flexibility.The MAX16127 provides limiter-mode fault management for overvoltage and thermal shutdown conditions; whereas the MAX16126 provides switch-mode fault management for overvoltage and thermal shutdown conditions. In the limiter mode, the output voltage is limited and active-low FLAG is asserted low during a fault. In the switch mode, the external MOSFETs are switched off and active-low FLAG is asserted low after a fault. The switch mode is available in four options: latch mode, 1 autoretry mode, 3 autoretry mode, and always autoretry mode.The MAX16126/MAX16127 are available in 12-pin TQFN packages. These devices operate over the automotive temperature range -40°C to +125°C.
