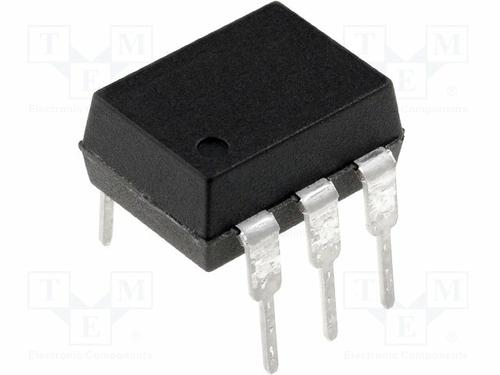

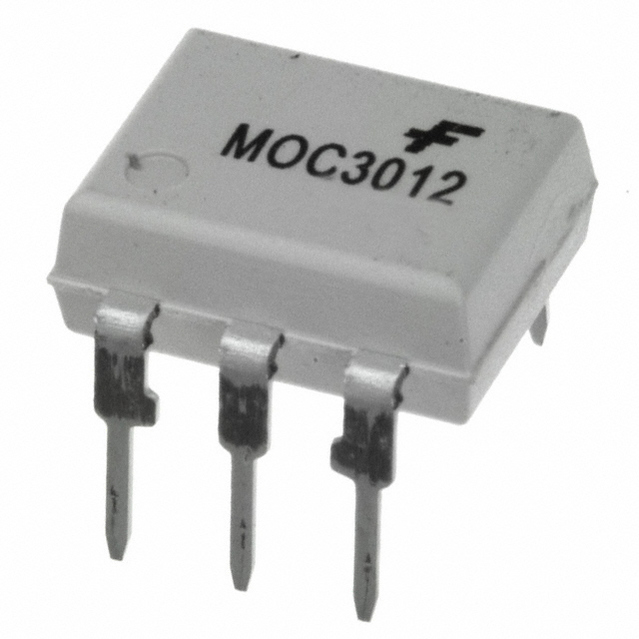

FAIRCHILD SEMICONDUCTOR MOC3012M 光电隔离器, 双向晶闸管输出, 7500V
The is a 6-pin 1-channel DIP 250V random phase Triac Driver Output Optocoupler contains a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. This output optocoupler is optically isolated triac driver device. It is designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115VAC operations.
- .
- Excellent IFT stability - IR emitting diode has low degradation
输入电压DC 1.15 V
输出电压 250 V
电路数 1
通道数 1
针脚数 6
正向电压 1.15 V
输入电流 60 mA
耗散功率 0.33 W
隔离电压 5.3 kV
保持电流 100 µA
正向电流 60 mA
输入电压Max 1.5 V
输出电压Max 175 VAC
击穿电压 3 V
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 330 mW
输入电压 1.15 V
安装方式 Through Hole
引脚数 6
封装 DIP-6
高度 3.53 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOC3012M Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MOC3012-M 飞兆/仙童 | 类似代替 | MOC3012M和MOC3012-M的区别 |
MOC3012M_F132 飞兆/仙童 | 类似代替 | MOC3012M和MOC3012M_F132的区别 |
MOC3020M 光宝 | 功能相似 | MOC3012M和MOC3020M的区别 |
