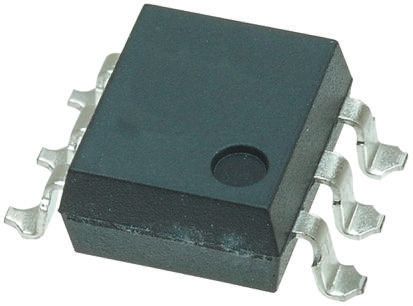

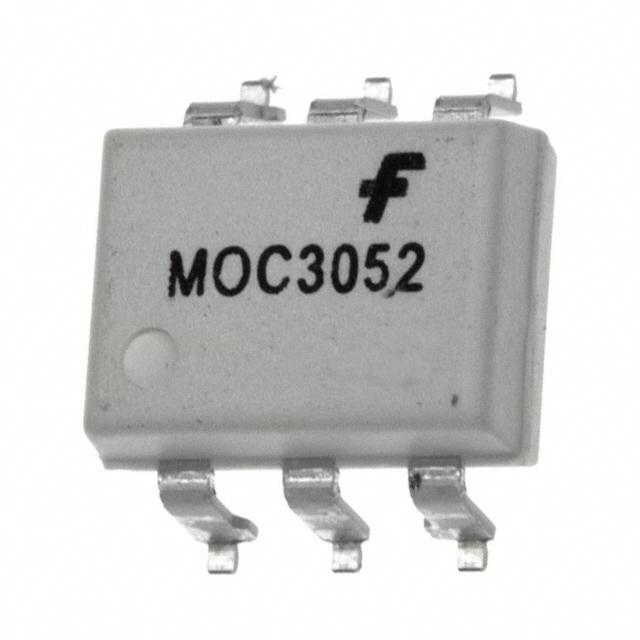

MOC3052SM

FAIRCHILD SEMICONDUCTOR  MOC3052SM  光电耦合器, 三端双向可控硅输出, 随机相位, 表面安装DIP, 6 引脚, 4.17 kV, 非过零, 600 V

The is a 6-pin random-phase TRIAC Driver Optocoupler consists of a GaAs infrared emitting diode optically coupled to a non-zero crossing silicon bilateral AC switch TRIAC. This device isolate low voltage logic from 115VAC and 240VAC lines to provide random phase control of high current TRIAC or thyristors. This device feature greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads. It is suitable for solenoid/valve controls, static AC power switch, solid state relay, incandescent lamp dimmers and temperature controls.

.

Excellent IFT stability - IR emitting diode has low degradation

.

850V Maximum working insulation voltage

.

6000V High allowable overvoltage

.

600V Peak blocking voltage
