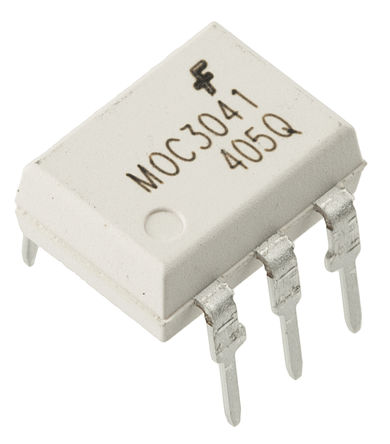

FAIRCHILD SEMICONDUCTOR MOC3041M 光电耦合器, 三端双向可控硅输出, 过零, DIP, 6 引脚, 7.5 kV, 过零, 400 V
The from is a through hole zero cross triac driver output optocoupler in 6 pin DIP package. This device contains a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. This device is designed for interfacing logic system to equipment powered from 115VAC lines, teletypewriters, CRTs, solid state relays, industrial controls, printers, motor and solenoid and appliances.
- .
- Peak voltage blocking of 400V
- .
- Isolation voltage of 4.17KV
- .
- LED trigger current of 15mA at 3V terminal voltage
- .
- UL 1577 and DIN-EN IEC60747-5-5 approved
- .
- Operating temperature range from -40°C to 85°C
输入电压DC 1.25 V
输出电压 400 V
电路数 1
通道数 1
针脚数 6
正向电压 1.25 V
输入电流 30.0 mA
耗散功率 250 mW
隔离电压 7.5 kV
保持电流 400 µA
正向电流 60 mA
输入电压Max 1.5 V
输出电压Max 280 VAC
输入电流Min 60 mA
击穿电压 6 V
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
输入电压 1.25 V
安装方式 Through Hole
引脚数 6
封装 DIP-6
长度 8.89 mm
宽度 6.6 mm
高度 3.53 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOC3041M Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MOC3043SR2M 安森美 | 功能相似 | MOC3041M和MOC3043SR2M的区别 |
MOC3023M 光宝 | 功能相似 | MOC3041M和MOC3023M的区别 |
MOC3043M 安森美 | 功能相似 | MOC3041M和MOC3043M的区别 |
