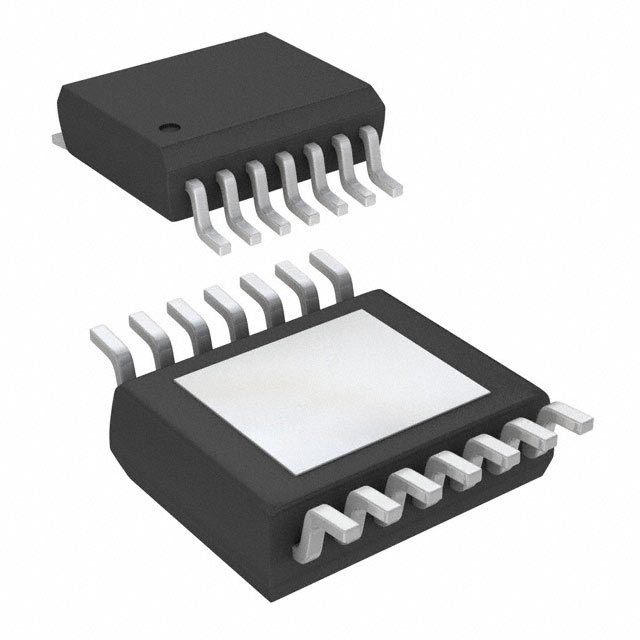

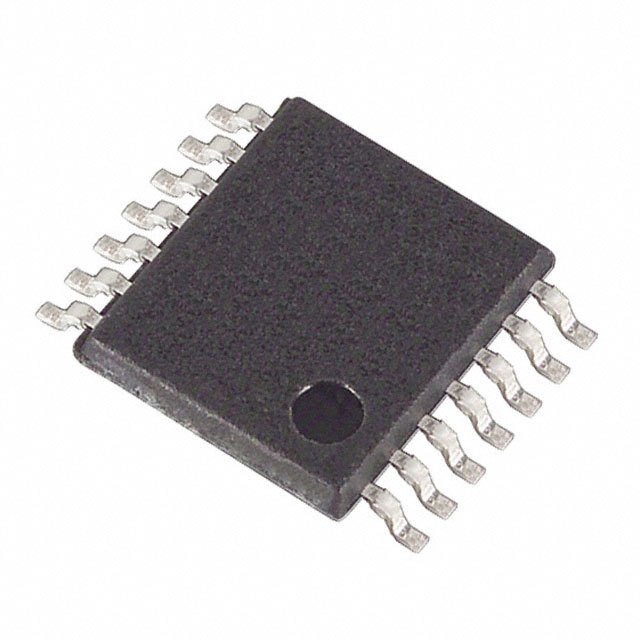

过压与过流保护器, 4.5 V至36 V输入, TSSOP-14
The is an adjustable overvoltage and overcurrent protector with high accuracy in 14 pin TSSOP package. The adjustable overvoltage and overcurrent-protection devices are ideal to protect systems against positive and negative input voltage faults up to ±40V and feature low 100Mohm typ RON FETs. The overvoltage-protector OVP feature protects voltages between 6V and 36V while the undervoltage-protector UVP feature protects voltages between 4.5V and 24V. The overvoltage lockout OVLO and undervoltage lockout UVLO thresholds are set using optional external resistors. The factory-preset internal OVLO threshold is 33V typ and the preset internal UVLO threshold is 19.2V typ. The device also features programmable current-limit protection up to 4.2A. The device limits the current continuously when set to continuous mode.
电源电压DC 4.50V min
电路数 1
针脚数 14
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±15 %
电源电压Max 36 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 14
封装 TSSOP-14
封装 TSSOP-14
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Tube
制造应用 消费电子产品, 工业, Industrial, Power Management, Portable Devices, Consumer Electronics, 便携式器材, 通用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
