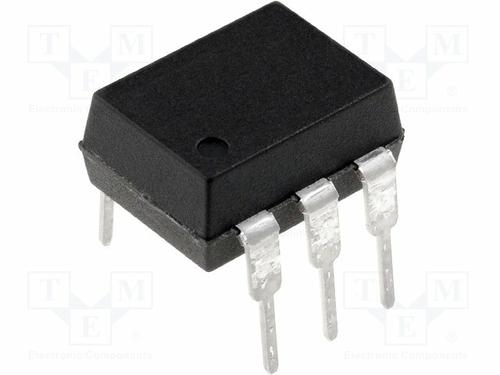

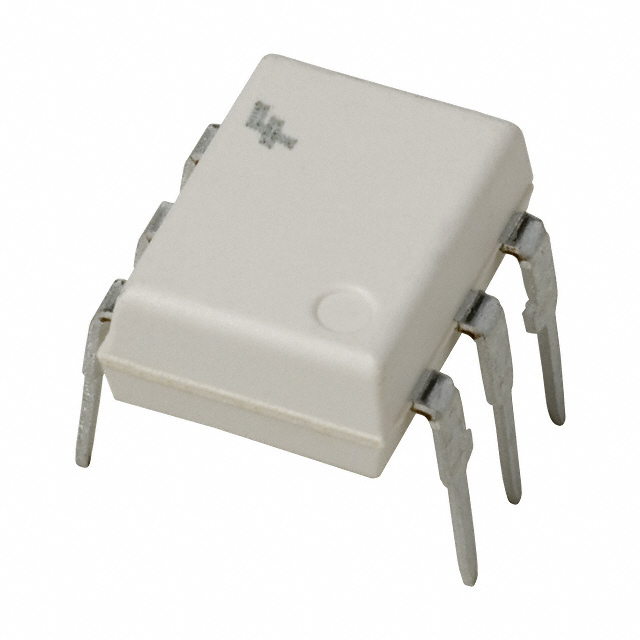

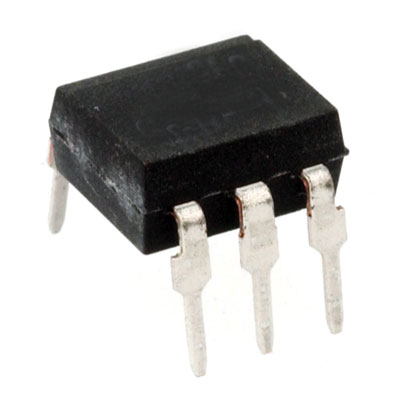

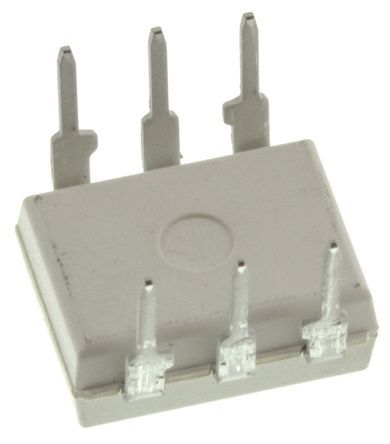

FAIRCHILD SEMICONDUCTOR MOC3042M 光电耦合器, 三端双向可控硅输出, DIP, 6 引脚, 7.5 kV, 过零, 400 V
The MOC3042-M is a 400V Zero Crossing TRIAC Driver Output Optocoupler consists of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. They are designed for use with a TRIAC in the interface of logic systems to equipment powered from 115VAC lines such as teletypewriters, CTRs, solid-state relays, printers and solenoids etc.
- .
- Simplifies logic control of 115VAC power
- .
- Zero voltage crossing
- .
- dv/dt of 2000V/µs Typical, 1000V/µs guaranteed
- .
- 400V Peak blocking voltage
额定电压DC 400 V
输入电压DC 1.25 V
输出电压 400 V
电路数 1
通道数 1
针脚数 6
正向电压 1.25 V
输入电流 30.0 mA
耗散功率 0.25 W
隔离电压 7.5 kV
保持电流 400 µA
正向电流 60 mA
输入电压Max 1.5 V
输出电压Max 280 VAC
输入电流Min 60 mA
击穿电压 6 V
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 250 mW
输入电压 1.25 V
安装方式 Through Hole
引脚数 6
封装 DIP-6
高度 3.53 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
制造应用 Consumer Electronics, Motor Drive & Control, Industrial, Power Management, Lighting
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOC3042M Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MOC3020M 光宝 | 功能相似 | MOC3042M和MOC3020M的区别 |
MOC3022M 光宝 | 功能相似 | MOC3042M和MOC3022M的区别 |
MOC3041M 安森美 | 功能相似 | MOC3042M和MOC3041M的区别 |
