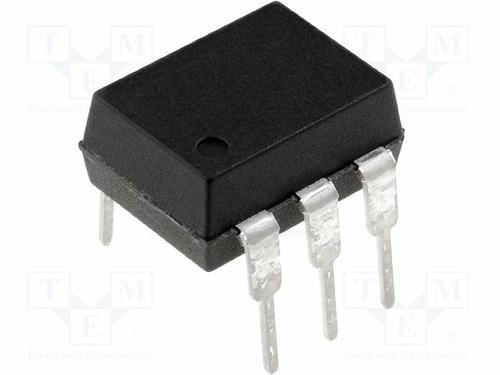

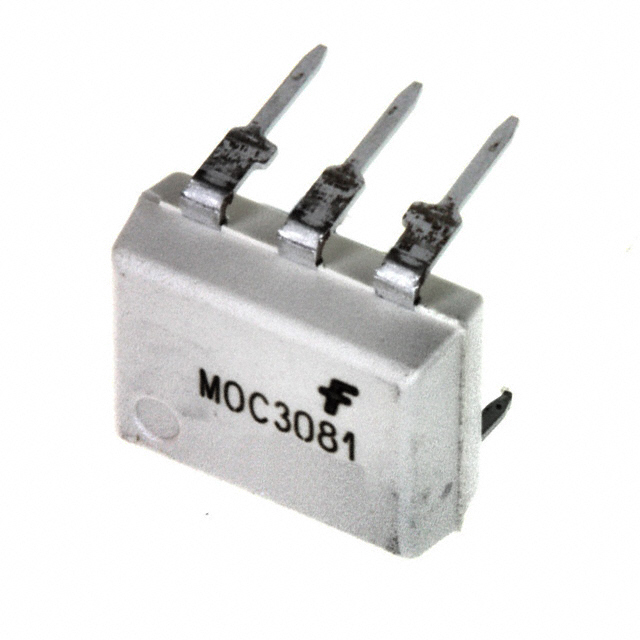

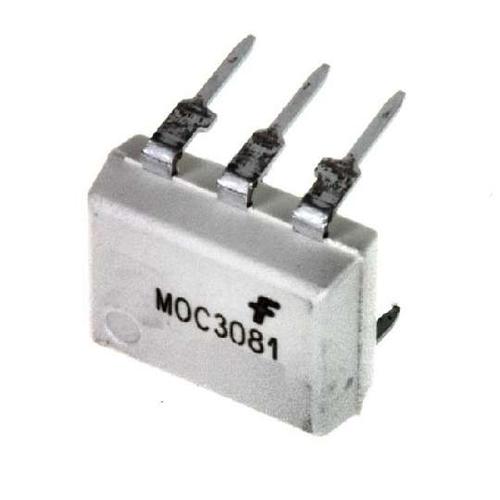

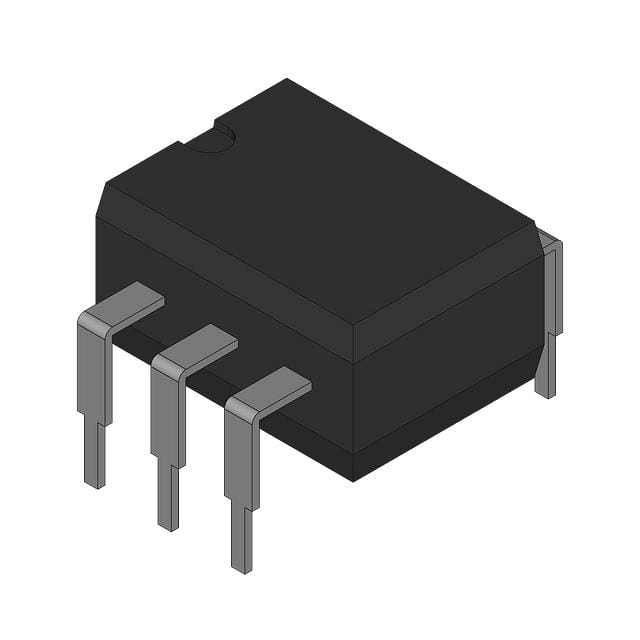

MOC3081M

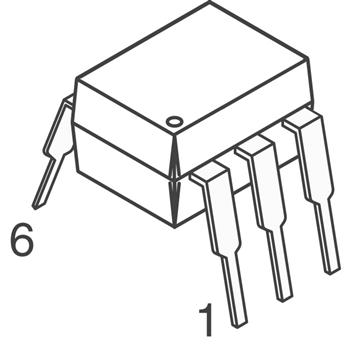

DIP6 通孔 1 通道 800 V 7500 V 峰值 过零 Triac 光隔离器

DESCRIPTION

The , MOC3082M and MOC3083M devices consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver.

They are designed for use with a discrete power triac in the interface of logic systems to equipment powered from 240 VAC lines, such as solid-state relays, industrial controls, motors, solenoids and consumer appliances, etc.

FEATURES

• Underwriters Laboratories UL recognized - file #E90700, Volume 2

• VDE recognized - file #102497 - add option V e.g., MOC3083VM

• Simplifies logic control of 240 VAC power

• Zero voltage crossing

• dv/dt of 1500 V/µs typical, 600 V/µs guaranteed

• Compatible with ’s FKPF12N80 discrete power triac

APPLICATIONS

• Solenoid/valve controls

• Lighting controls

• Static power switches

• AC motor drives

• Temperature controls

• E.M. contactors

• AC motor starters

• Solid state relays
