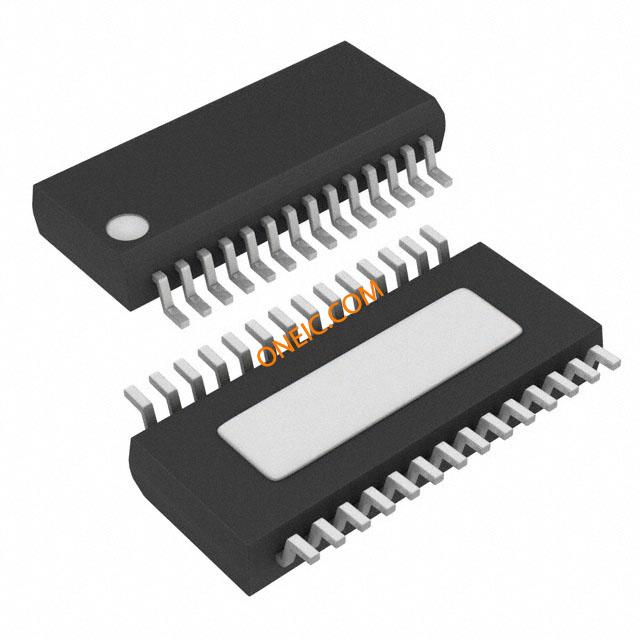

MAX2510EEI

低电压IF收发器，限幅器/ RSSI和正交调制器 Low-Voltage IF Transceiver with Limiter/RSSI and Quadrature Modulator

General Description

The MAX2510 is a highly integrated IF transceiver for digital wireless applications. It operates from a +2.7V to

+5.5V supply voltage and features four operating modes for advanced system power management. Supply current is reduced to 0.2µA in shutdown mode.

Features

♦+2.7V to +5.5V Single-Supply Operation

♦Complete Receive Path: 600MHz max 1st IF to 30MHz max 2nd IF

♦Unique, Wide-Dynamic-Range Downconverter Mixer Offers -8dBm IIP3, 11dB NF

♦90dB Dynamic-Range Limiter with High-Accuracy RSSI Function

♦Differential Limiter Output Directly Drives CMOS Input

♦100MHz to 600MHz Transmit Quadrature Modulator with 41dB Sideband Suppression

♦40dB Transmit Gain-Control Range; Up to +1dBm Output Power

♦Advanced Power Management four modes

♦0.2µA Shutdown Supply Current

Applications

PWT1900, Wireless Handsets, and Base Stations

PACS, PHS, DECT, and Other PCS Wireless

Handsets and Base Stations

400MHz ISM Transceivers

IF Transceivers

Wireless Data Links
