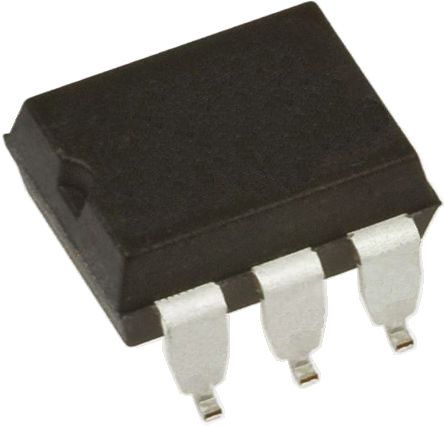

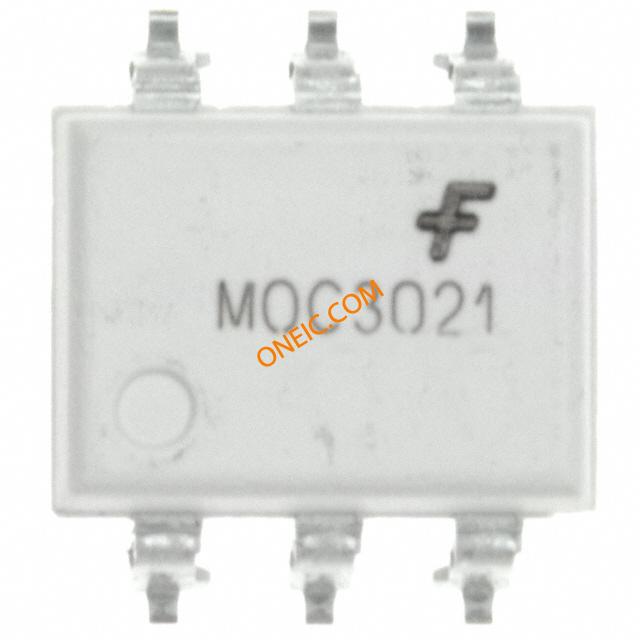

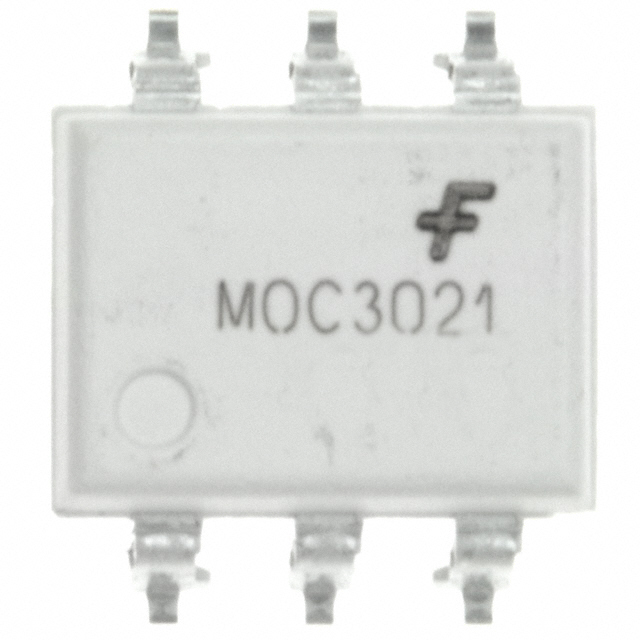

FAIRCHILD SEMICONDUCTOR MOC3021SM 光电耦合器, 三端双向可控硅输出, 随机相位, 表面安装DIP, 6 引脚, 5.3 kV, 非过零, 400 V
The is a 6-pin DIP Random-phase Optoisolator optically isolated TRIAC driver devices. This device contains a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a TRIAC. It is designed for interfacing between electronic controls and power TRIACs to control resistive and inductive loads for 115VAC operations. It is also suitable for solenoid/valve controls, traffic lights, static AC power switch, vending machines, incandescent lamp dimmers and solid state relay.
- .
- Excellent IFT stability - IR emitting diode has low degradation
- .
- 850V Maximum working insulation voltage
- .
- 6000V Highest allowable over voltage
输入电压DC 1.15 V
电路数 1
通道数 1
针脚数 6
正向电压 1.15 V
耗散功率 330 mW
隔离电压 5.3 kV
保持电流 100 µA
正向电流 60 mA
输入电压Max 1.5 V
输出电压Max 280 VAC
输入电流Min 60 mA
击穿电压 3 V
正向电压Max 1.5 V
正向电流Max 60 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 330 mW
输入电压 1.15 V
安装方式 Surface Mount
引脚数 6
封装 DIP-6
高度 3.53 mm
封装 DIP-6
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Each
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MOC3021SM Fairchild 飞兆/仙童 | 当前型号 | 当前型号 |
MOC3021SR2M 飞兆/仙童 | 类似代替 | MOC3021SM和MOC3021SR2M的区别 |
IL420-X007T 威世 | 功能相似 | MOC3021SM和IL420-X007T的区别 |
IL4208-X007T 威世 | 功能相似 | MOC3021SM和IL4208-X007T的区别 |
