MAX2851ITK+

MAXIM INTEGRATED PRODUCTS  MAX2851ITK+  MIMO RECEIVER, 5-CH, 4.9-5.9GHZ, TQFN-68 新

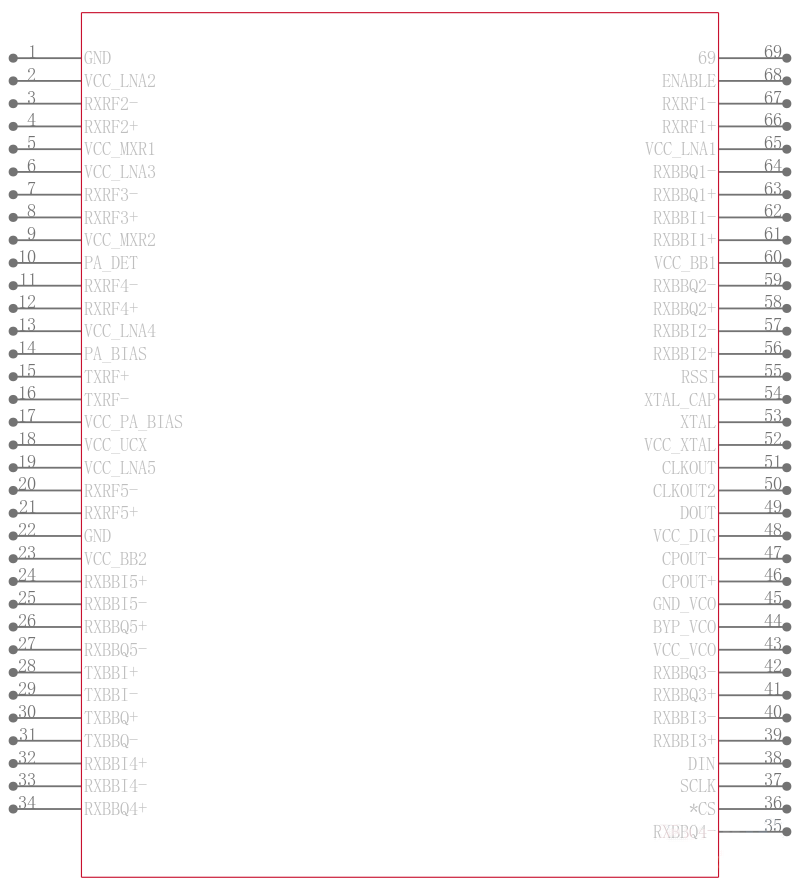

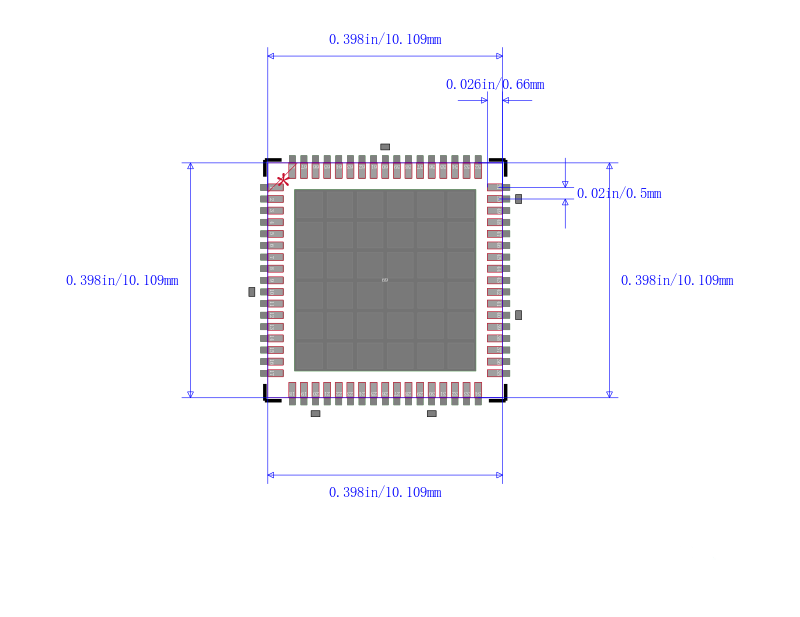

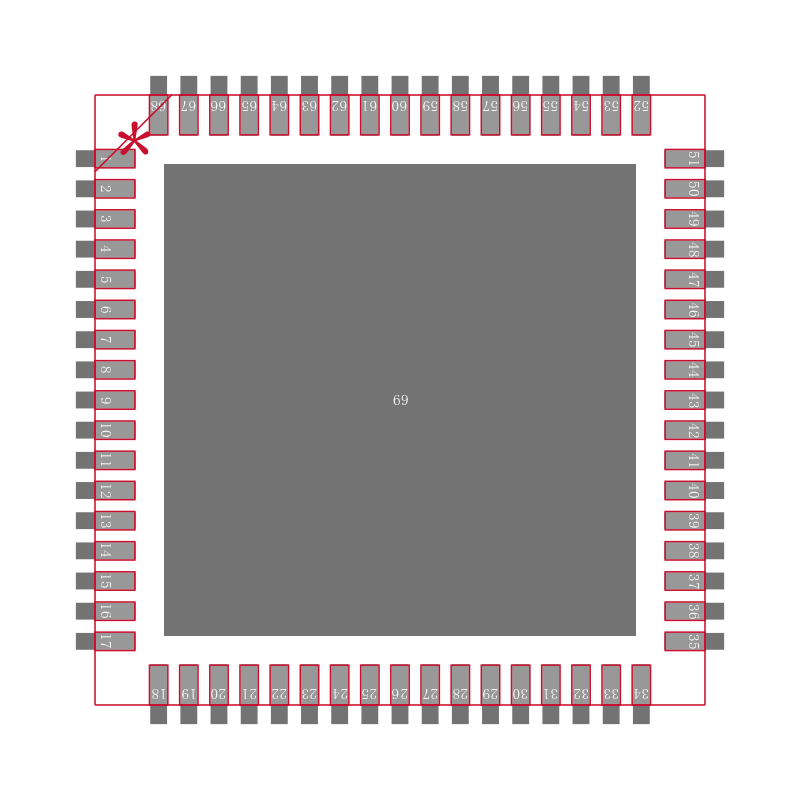

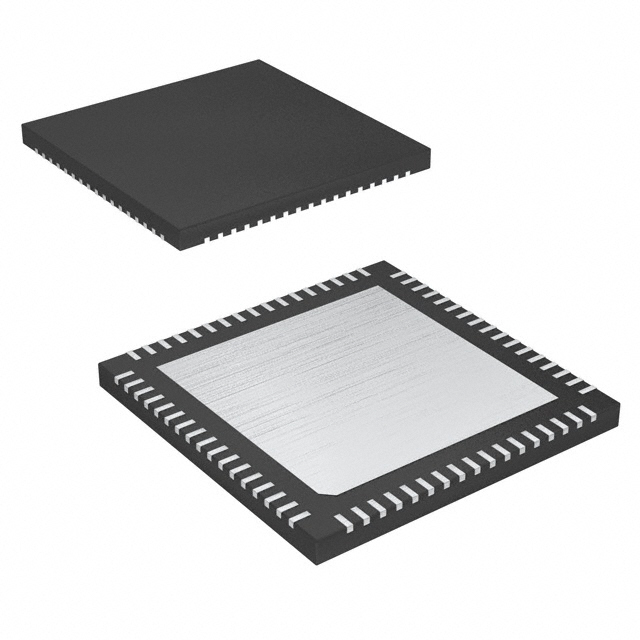

The is a 5GHz, 5-channel MIMO receiver in 68 pin TQFN package. This single chip RF receiver IC is designed for 5GHz wireless HDMI applications. The IC includes all circuitry required to implement complete 5-channel MIMO RF receiver function and crystal oscillator, providing fully integrated receive path, VCO, frequency synthesis & baseband/control interface. It includes fast settling sigma-delta RF fractional synthesizer with 76Hz frequency programming step size. The IC integrates on-chip I/Q amplitude and phase error calibration circuits. The receiver includes both an in-channel RSSI and RF RSSI. On-chip monolithic filters are included for receiver I/Q baseband signal channel selection for supporting both 20MHz and 40MHz RF channels. The baseband filtering and Rx signal paths are optimized to meet stringent WHDI requirements. The down converter local oscillator is coherent among all receiver channels. The reverse-link control channel uses an on-chip 5GHz OFDM transmitt

.

High performing, cost effective RF design for wireless HD video WHDI

.

5GHz, 5x MIMO downlink receivers, single uplink IEEE 802.11a transmitter

.

4900MHz to 5900MHz frequency range 4.5dB Rx noise figure

.

Coherent LO among receivers 60dB, dynamic range receiver RSSI

.

70dB Rx gain control range with 2dB step size, digitally controlled

.

Programmable 20MHz/40MHz Rx I/Q low pass channel filters

.

-5dBm transmit power 54Mbps OFDM

.

4-wire SPI digital interface and I/Q analogue baseband interface

.

Monolithic low noise VCO with -35dBc integrated phase noise

.

2.7V to 3.6V supply voltage and -25°C to +85°C temperature range

ESD sensitive device, take proper precaution while handling the device.
