MHPS2283

MHPS2283图片1
MHPS2283图片2
MHPS2283图片3
MHPS2283图片4

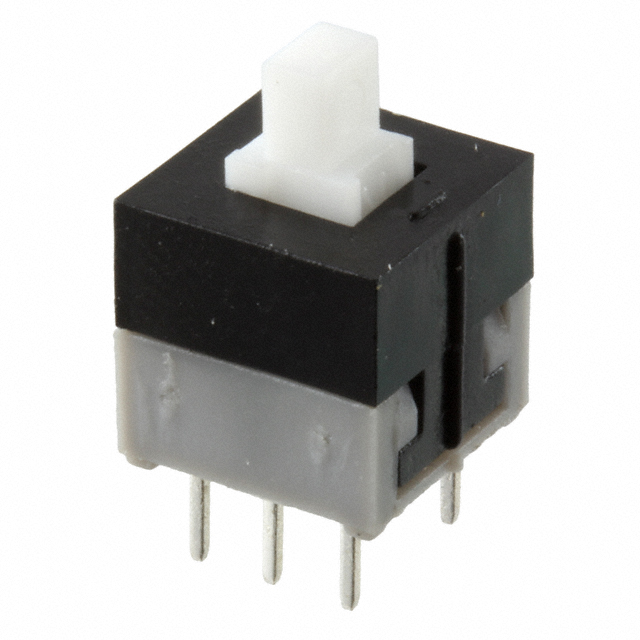

MHPS2283图片5
MHPS2283概述

Switch Key DPDT 0.1A 30VDC 1.76N PC Pins Thru-Hole

is manufactured by APEM and is categorized in the Pushbutton Switches category. MHPS2283 is described as SWITCH PUSH DPDT 0.1A 30V. Perfect Parts is a supplier of Switches and other Electromechanicals.


得捷:
SWITCH PUSH DPDT 0.1A 30V


Chip1Stop:
Switch Key DPDT 0.1A 30VDC 1.76N PC Pins Thru-Hole


Verical:
Switch Key DPDT 0.1A 30VDC 1.76N PC Pins Thru-Hole


MASTER:
Switch Key DPDT 0.1A 30VDC 1.76N PC Pins Thru-Hole


Powell:
Key Switch


Electro Sonic:
Switch Key DPDT 0.1A 30VDC 1.76N PC Pins Thru-Hole


MHPS2283中文资料参数规格
技术参数

触点电镀 Silver

额定电压DC 30 V

额定电流 100mA DC

触点类型 DPDT

触点额定电流 100 mA

封装参数

安装方式 Through Hole

外形尺寸

长度 8.9 mm

宽度 8.5 mm

高度 14 mm

物理参数

工作温度 -20℃ ~ 65℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买MHPS2283
型号: MHPS2283
制造商: Apem Components
描述:Switch Key DPDT 0.1A 30VDC 1.76N PC Pins Thru-Hole
