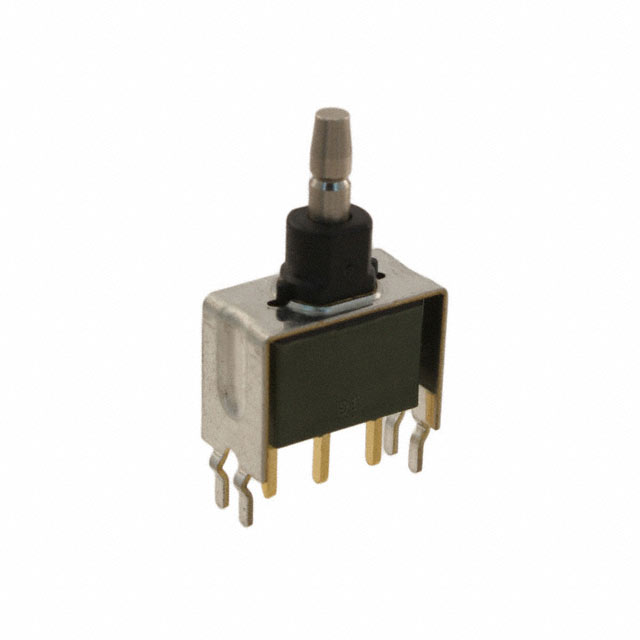

M2 系列 密封 小型 单刀双掷 开-瞬时 通孔 按键开关
Series M2 process sealed miniature pushbuttons have upper and lower case halves ultrasonically welded together plus epoxy sealed terminals and an o-ring seal at the top of the bushing to prevent entry of flux, solvents and other contaminants during build processes. The sealed construction lends itself to real world applications too.
立创商城:
M2B15BA5G13
得捷:
SWITCH PUSH SPDT 0.4VA 28V
贸泽:
按钮开关 SPDT ON-ON .4VA BRKT PC PRCS SEALED
艾睿:
Turn on and off portions of your circuit design with the aid of this M2B15BA5G13 push button switch manufactured from NKK Switches. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This push switch has an operating temperature range of -30 °C to 85 °C. The M2B15BA5G13 push switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 16.25 mm long, 25.55 mm tall and 8 mm deep.
Allied Electronics:
SWITCH PUSH SPDT 0.4VA 28V
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole
Powell:
MINIATURE PUSHBUTTON/PC
额定电压DC 28 V
额定电压AC 28 V
额定电流 0.0142 A
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VAC
接触电阻Max 30 mΩ
安装方式 Through Hole
封装 -
长度 16.25 mm
宽度 8 mm
高度 25.55 mm
封装 -
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
