STMICROELECTRONICS MP34DT02TR 音频控制器, MEMS 麦克风, 1.64V 至 3.6V, HCLGA, 4 引脚, -40 °C

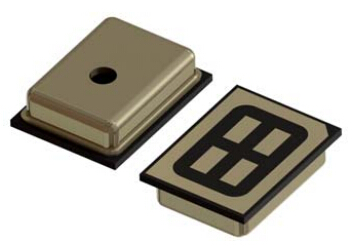

The MP34DT02 is an ultra-compact, low-power, omnidirectional, digital MEMS microphone built with a capacitive sensing element and an IC interface.
The sensing element, capable of detecting acoustic waves, is manufactured using a specialized silicon micromachining process dedicated to produce audio sensors.
The IC interface is manufactured using a CMOS process that allows designing a dedicated circuit able to provide a digital signal externally in PDM format.
The MP34DT02 has an acoustic overload point of 120 dBSPL with a 60 dB signal-to-noise ratio and –26 dBFS sensitivity.
The MP34DT02 is available in a top-port, SMD-compliant, EMI-shielded package and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
**Key Features**
- .
- Single supply voltage
- .
- Low power consumption
- .
- 120 dBSPL acoustic overload point
- .
- 60 dB signal-to-noise ratio
- .
- Omnidirectional sensitivity
- .
- –26 dBFS sensitivity
- .
- PDM output
- .
- HCLGA package
- .
- Top-port design
- .
- SMD-compliant
- .
- EMI-shielded
- .
- ECOPACK® ,RoHS, and “Green” compliant
