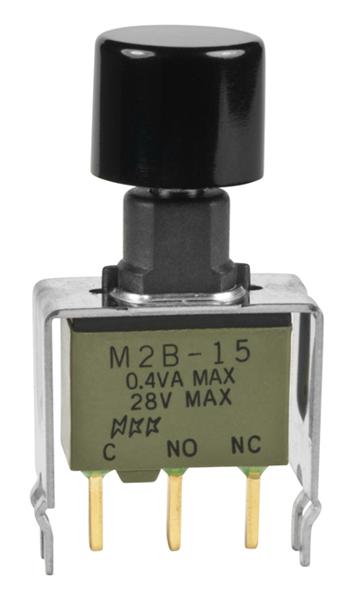

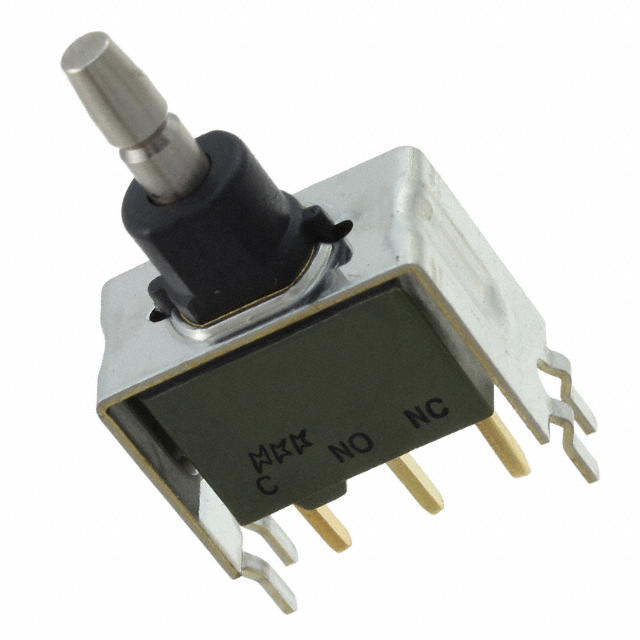

M2 系列 单刀双掷 开开 直 PC 端子 最小值 密封 按键开关
按钮 SPDT 标准 通孔
立创商城:
M2B15BA5G13-CA
得捷:
SWITCH PUSH SPDT 0.4VA 28V
贸泽:
Pushbutton Switches MINIATURE PUSHBUTTON/PC
艾睿:
Quickly reset and disrupt processes by mechanically pressing this M2B15BA5G13-CA push button switch from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This push switch has an operating temperature range of -30 °C to 85 °C. The M2B15BA5G13-CA push switch has a PC pin termination style. This product is 16.25 mm long, 26.5 mm tall and 8 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
Allied Electronics:
SWITCH PUSH SPDT 0.4VA 28V
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole
Verical:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Bracket Mount/Through Hole
Powell:
MINIATURE PUSHBUTTON/PC
额定电压DC 28 V
接触器类型 Button
额定电压AC 28 V
额定电流 0.0142 A
绝缘电阻 1000 MΩ
排数 1
额定功率 0.4 VA
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VAC
接触电阻Max 30 mΩ
安装方式 Through Hole
封装 -
长度 16.25 mm
宽度 8 mm
高度 26.5 mm
封装 -
触点材质 Copper
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
