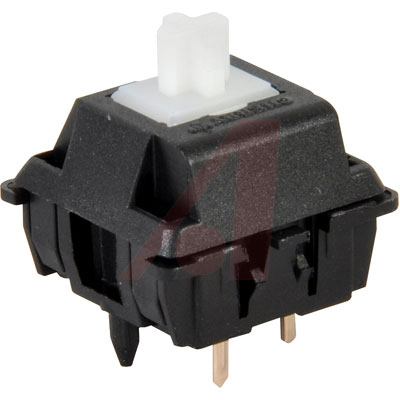

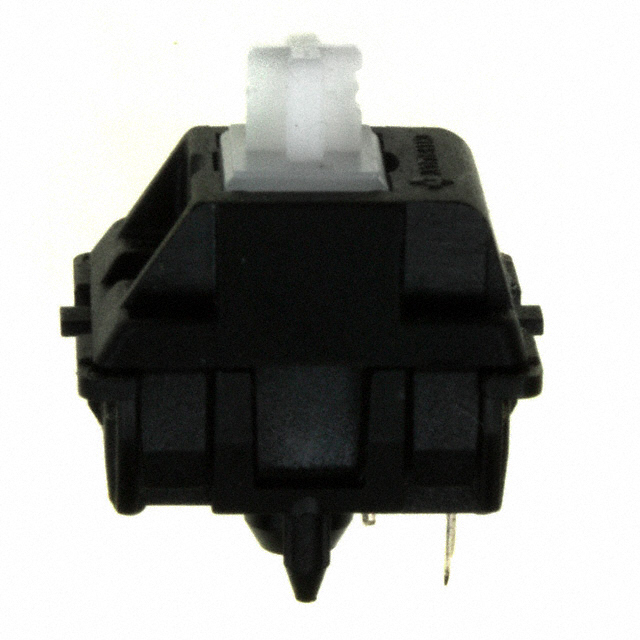

Switch Key N.O. SPST 0.01A 12VAC 12VDC 0.56N PC Pins 20000000Cycles Thru-Hole
is manufactured by Cherry Americas and is categorized in the Pushbutton Switches category. MX1A-C1NW is described as SWITCH PUSH SPST-NO 0.01A 12V. Perfect Parts is a supplier of Switches and other Electromechanicals.
得捷:
SWITCH PUSH SPST-NO 0.01A 12V
艾睿:
Switch Key N.O. SPST 0.01A 12VAC 12VDC 0.56N PC Pins 20000000Cycles Thru-Hole
Allied Electronics:
Switch, Tactile; SPST-NO; 01A 12VAC/VDC; Off-On; Clear; Panel Mount; PC Pins
触点电镀 Gold
额定电压DC 12 V
额定电压AC 12 V
额定电流 10mA AC, 10mA DC
方向 Vertical
触点类型 SPST-NO
触点额定电流 10.0 mA
额定电流Max 0.01 A
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压DC Max 12 V
额定电压AC Max 12 V
接触电阻Max 200 mΩ
安装方式 Through Hole
长度 15.6 mm
宽度 15.6 mm
高度 11.6 mm
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
