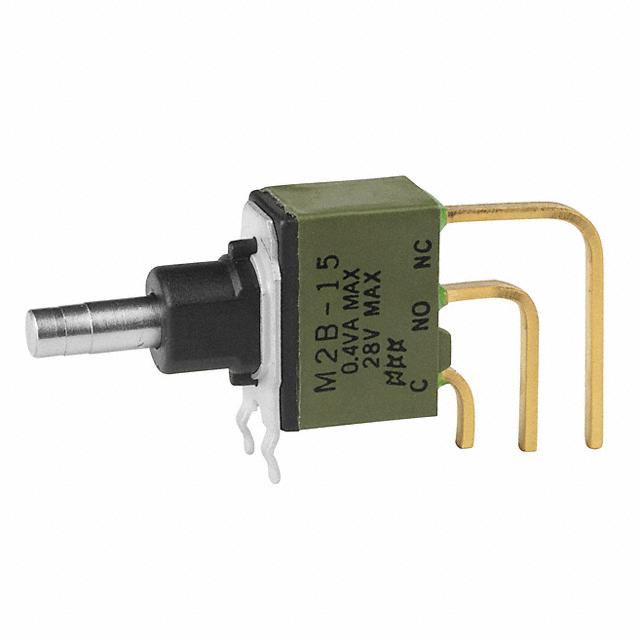

Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
按钮 SPDT 标准 通孔,直角,垂直
得捷:
SWITCH PUSH SPDT 0.4VA 28V
立创商城:
M2B15AA5G40
艾睿:
Manually control your circuit components with this M2B15AA5G40 push button switch from NKK Switches. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2B15AA5G40 push switch has a PC pin termination style. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC. This product is 7.2 mm long, 12.7 mm tall and 34.92 mm deep.
Allied Electronics:
SWITCH PUSH SPDT 0.4VA 28V
Chip1Stop:
Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole
触点电镀 Silver
额定电压DC 28 V
额定电压AC 28 V
额定电流 0.0142 A
排数 1
方向 Vertical
触点类型 SPDT
额定电流Max 0.1A @28VAC, 28VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 28 VAC
接触电阻Max 30 mΩ
安装方式 Vertical, PCB
封装 -
长度 7.2 mm
宽度 34.92 mm
高度 12.7 mm
封装 -
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
