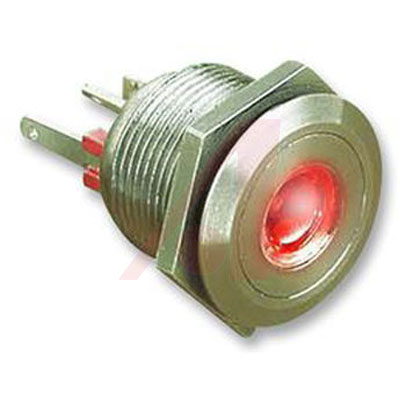

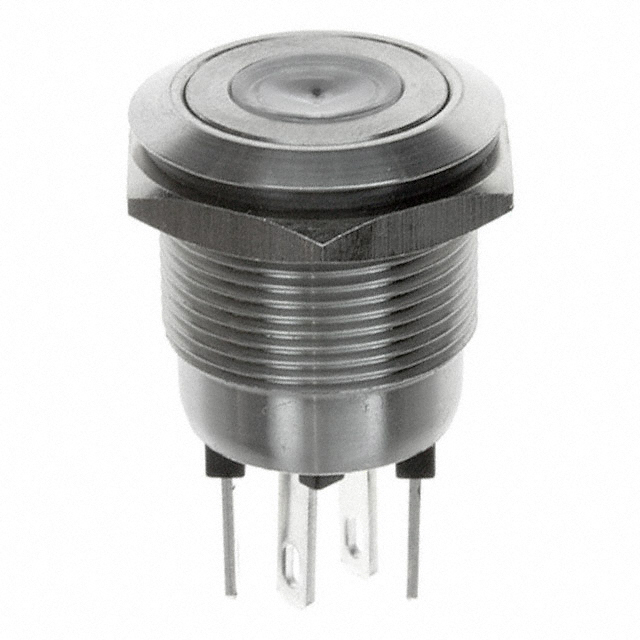

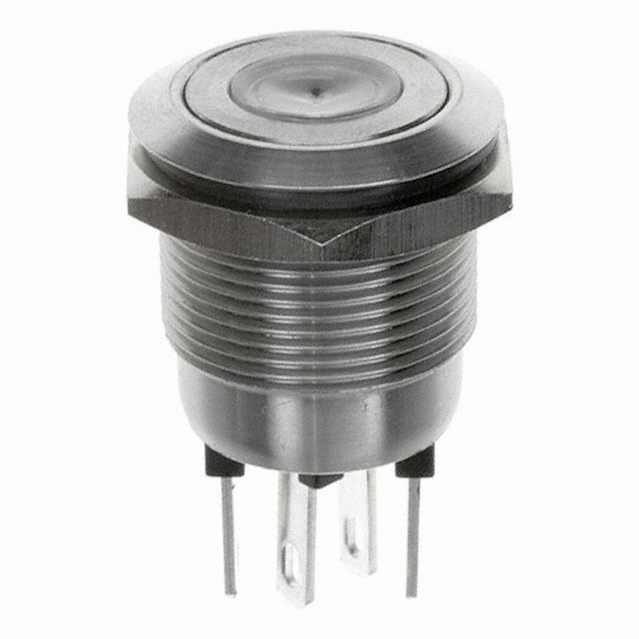

带LED面板不锈钢防爆开关,蓝/红
Illuminated vandal-resistant security switches styled to match MP0031 and MP0037 switches. Manufactured from high-grade stainless steel with tough polycarbonate lenses. Single-pole push to make contacts.
立创商城:
MPI001/28/D4
得捷:
SWITCH PUSH SPST-NO 0.05A 24V
贸泽:
按钮开关 Stainles Steel Vandl Resistant Switch
艾睿:
Switch Push Button N.O. SPST Flush Round Button 0.05A 24VDC Momentary Contact Panel Mount Quick Connect Bulk
Allied Electronics:
Switch, Dot Illuminated; Red/Blue; S.P. Push to Make; 50mA; 24VDC; 2.8mm Solder Tabs
Chip1Stop:
Switch Push Button N.O. SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount
Verical:
Switch Push Button N.O. SPST Flush Round Button 0.05A 24VDC Momentary Contact Panel Mount Quick Connect Bulk
力源芯城:
带LED面板不锈钢防爆开关,蓝/红
额定电压DC 24 V
额定电流 0.05 A
绝缘电阻 1000 MΩ
排数 1
触点类型 SPST
接触电阻 100 mΩ
触点额定电流 50 mA
额定电流Max 0.05 A
正向电流Max 20 mA
工作温度Max 70 ℃
工作温度Min -30 ℃
额定电压 24 VDC
安装方式 Panel
封装 -
长度 25.7 mm
宽度 25.7 mm
高度 32.7 mm
封装 -
工作温度 -30℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
