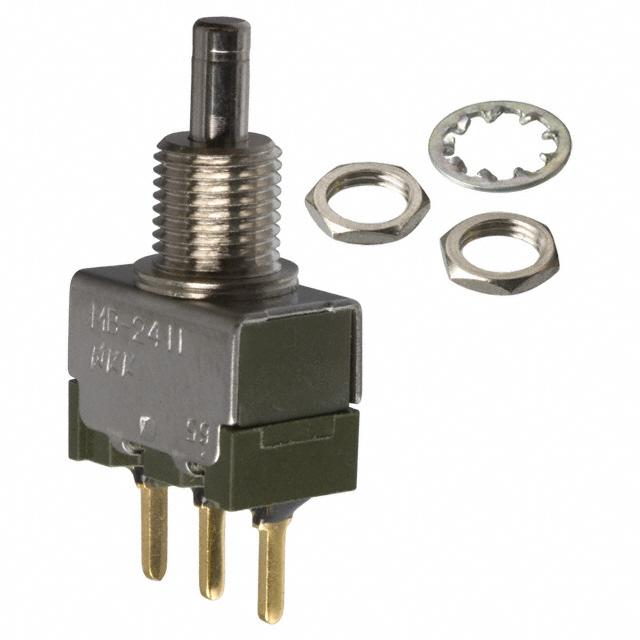

MB2411E1G03

Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Panel Mount/Through Hole

* 3A Power Level & 0.4VA Logic Level; Snap-in, Bushing and PCB Mount, Snap-Action Mechanism, UL, CSA, cULus

.

Snap-action Pushbutton Switches

.

Short stroke and light touch.

.

Internal o-ring protects against contamination.

.

High torque bushing construction prevents rotation or separation from frame during installation.

.

Anti-jamming design protects contacts from damage caused by excessive downward force on the actuator.

.

Stainless-steel frame resists corrosion.

.

Longer center solder lug terminal simplifies wiring and soldering.

.

Patented silver contacts of specially composed alloy for hardness.

.

Epoxy sealed terminals prevent entry of solder flux and other contaminants.

.

Snap-acting mechanism gives smooth actuation and audible feedback.

.

Prominent external insulating barriers increase insulation resistance and dielectric strength.
