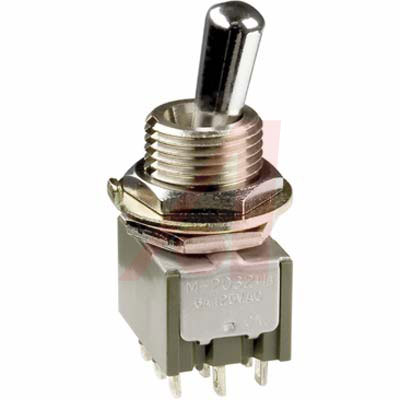

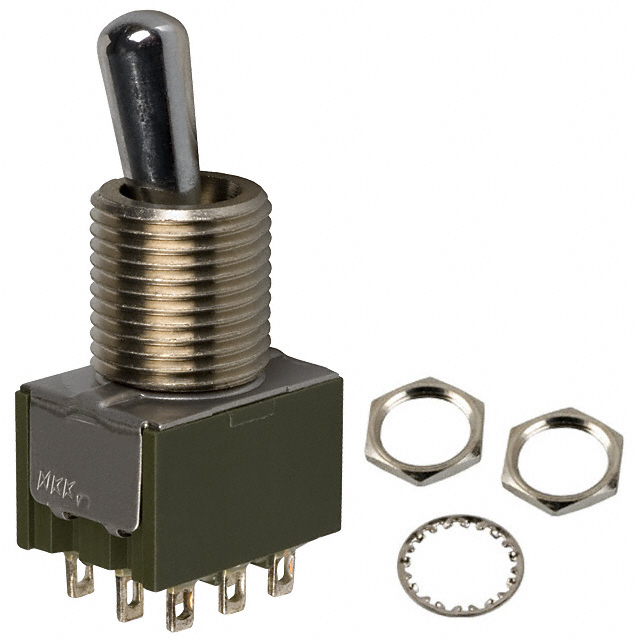

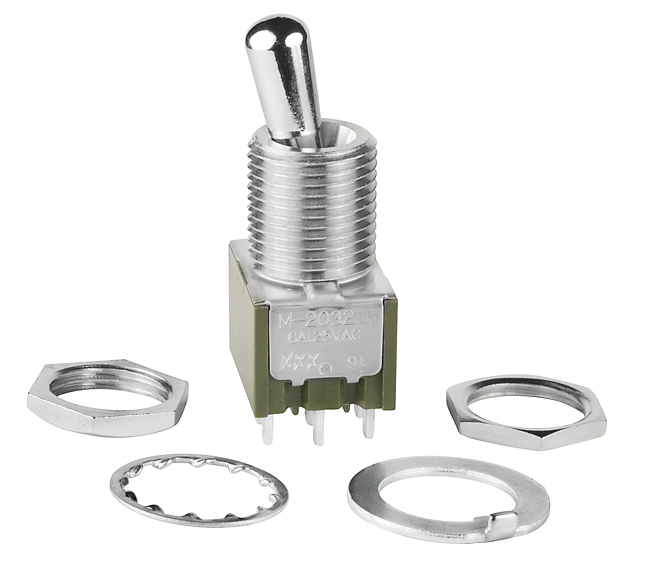

NKK SWITCHES M2032BB1W01 拨动开关, 3PDT, 6A, 125VAC
Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.
欧时:
Toggle SW 3PDT A 125V
e络盟:
开关, 拨动, 3PDT, 6A, 125VAC
艾睿:
The M2032BB1W01 toggle switch from NKK Switches is a simple way to power on and off various components of your application. This device has a maximum current rating of 6 A @ 125VAC. It has a 3PDT configuration. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2032BB1W01 toggle switch has a solder lug termination style. This product is 13 mm long, 39.5 mm tall and 17.5 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
SWITCH, TOGGLE, SUBMINIATURE, LARGE LEVER, BUSHING W/SOLDER LUG TERMINALS, 3PDT
Verical:
Switch Toggle ON None ON 3PDT Large Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
Newark:
# NKK SWITCHES M2032BB1W01 Toggle Switch, Non Illuminated, 3PDT, On-None-On, Panel, 6 A
Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
触点电镀 Silver
额定电压DC 30 V
接触器类型 Standard
额定电压AC 125 V
额定电流 6 A
排数 3
方向 Vertical
触点类型 3PDT
针脚数 2
额定电流Max 6A @125VAC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 250 VAC
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
长度 13 mm
宽度 13.0 mm
高度 39.5 mm
触点材质 Silver Alloy
工作温度 -30℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
