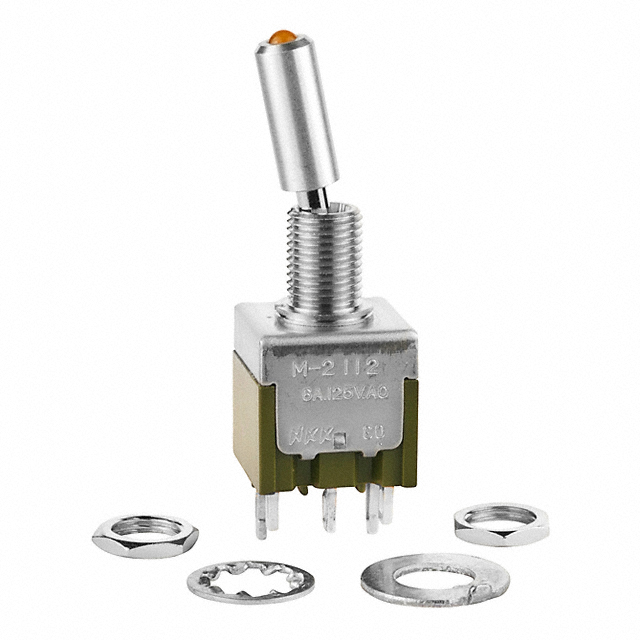

M2112LEW01

NKK SWITCHES  M2112LEW01  拨动开关, 发光, SPDT, 6A, 125VAC

* 6A Power Level & 0.4VA Logic Level; Bushing and PCB Mount, Single or Bicolor LED, UL, CSA

* LED Tipped Actuators

* Industry"s first LED illumination at tip of toggle and paddle switches.

* Single or bicolor LEDs to meet varied design requirements.

* Anti-jamming feature to protect contacts from damage caused by excessive downward force on the toggle.

* High torque bushing prevents the bushing from rotating or separating from the metal frame during installation.

* Stainless-steel frame resists corrosion.

* Patented silver contacts are made of specially composed alloy for hardness.

* High insulating barriers protect against crossover in double pole devices.

* Terminals are molded in and epoxy sealed to lock out flux, dust and other contaminants.

* 1500V dielectric strength between switch contacts and case is accomplished by clinching the frame away from the terminals.
