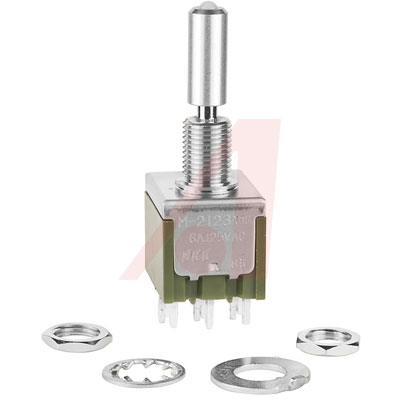

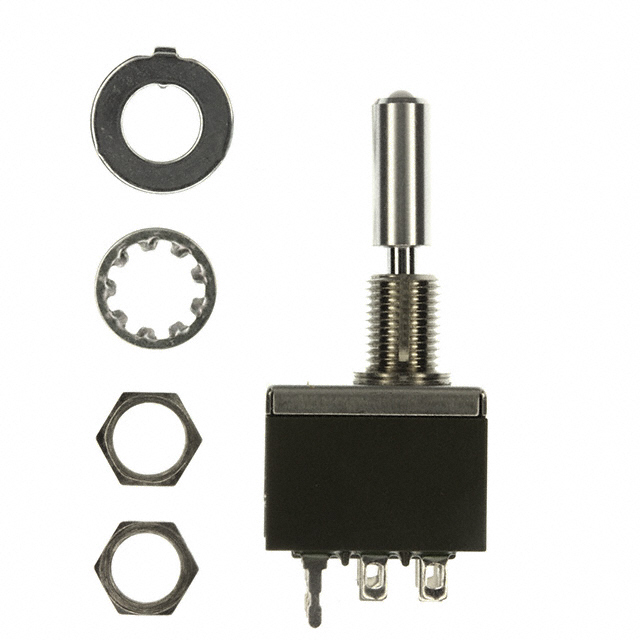

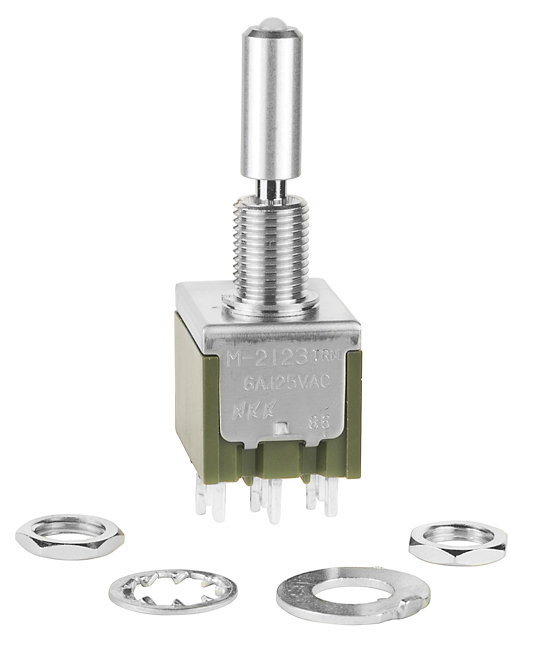

NKK SWITCHES M2123TCFW01 拨动开关, 发光, DPDT, 开-关-开, 面板, 3 A
The is a double-pole double-throw DPDT LED tipped Toggle Switch with solder lug with threaded bushing terminals, ON-OFF-ON function, synchronous LED circuits and actuator. The M2100 series toggle switch has stainless steel housing, diallyl phthalate UL94V-0 base and brass with nickel plating bushing. The LEDs can operate independently from or synchronously with switching operation. The anti-jamming feature to protect contacts from damage due to excessive downward force on the toggle. The high torque bushing prevents the bushing from rotating or separating from the metal frame during installation.
触点电镀 Silver
绝缘电阻 1.00 GΩ
排数 2
触点类型 DPDT
接触电阻 10.0 mΩ
额定电流Max 6A @125VAC
工作温度Max 55 ℃
工作温度Min -10 ℃
接触电阻Max 10 mΩ
安装方式 Lug, Panel
长度 13 mm
宽度 17.5 mm
高度 43 mm
触点材质 Silver Alloy
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, 工业
RoHS标准
含铅标准 Contains Lead
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
