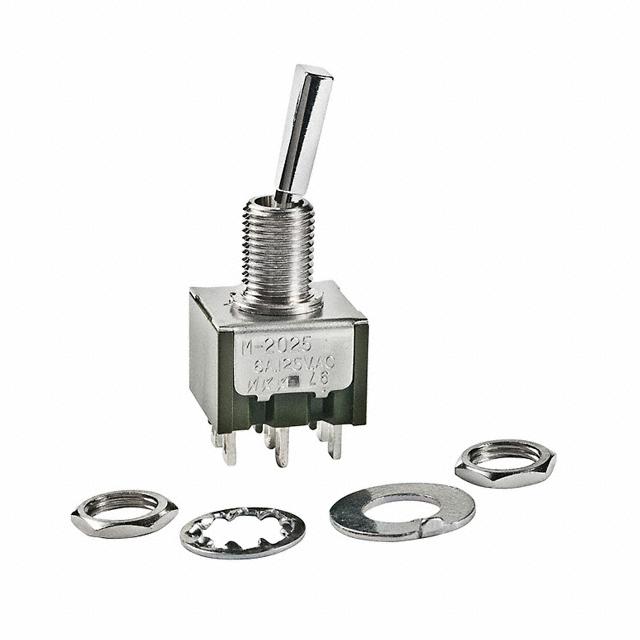

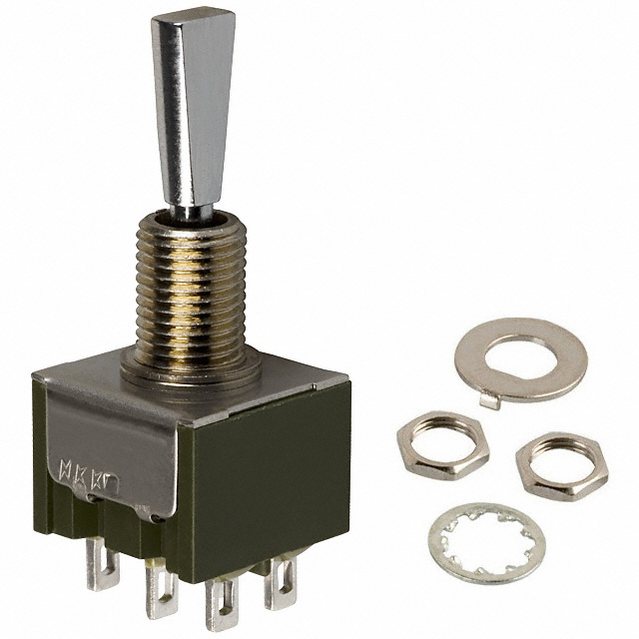

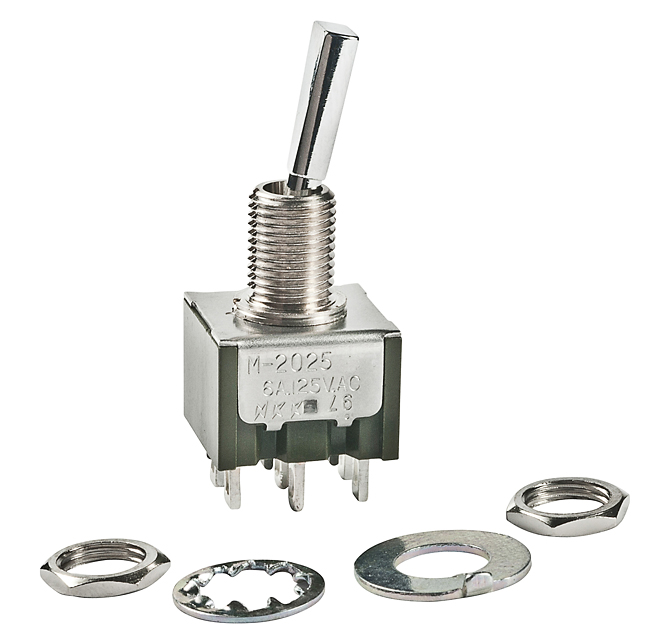

NKK SWITCHES M2025ES1W01 拨动开关, DPDT, 6A, 125VAC
Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.
贸泽:
Toggle Switches ON-NONE-ON DPDT
e络盟:
拨动开关, DPDT, 6A, 125VAC
艾睿:
The M2025ES1W01 toggle switch from NKK Switches is a simple way to power on and off various components of your application. It has a DPDT configuration. This device has a maximum current rating of 6 A @ 125VAC. This toggle switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2025ES1W01 toggle switch has a solder lug termination style. This product is 13 mm long, 34.2 mm tall and 12.7 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC.
Allied Electronics:
SWITCH, SUBMINIATURE, FLATTED LEVER, THREADED BUSHING, SOLDER LUG TERMINALS, DPDT
Verical:
Switch Toggle ON None ON DPDT Small Flat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
Newark:
# NKK SWITCHES M2025ES1W01 Toggle Switch, Non Illuminated, DPDT, On-None-On, Panel, 6 A
Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
触点电镀 Silver
额定电压DC 30 V
额定电压AC 125V, 250V
额定电流 6 A
排数 2
方向 Vertical
触点类型 DPDT
针脚数 2
额定电流Max 6 A
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 250 VAC
额定电压DC Max 30 V
额定电压AC Max 250 V
接触电阻Max 10 mΩ
安装方式 Panel, Solder Lug
长度 13 mm
宽度 12.7 mm
高度 34.2 mm
触点材质 Silver Alloy
工作温度 30℃ ~ 85℃
产品生命周期 25000 Cycles
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
