M 系列 小型 单刀双掷 开-关-瞬时 0.250 英寸 直 PC 端子 钮子开关
Series M miniature toggle switches are built to function most anywhere you put them. Antirotation, antijamming design protects contacts from damage due to excessive forces on the actuator. High insulating barriers increase isolation of circuits in multipole devices and provide added protection to contact points. Epoxy sealed terminals prevent entry of solder flux and other contaminants.
艾睿:

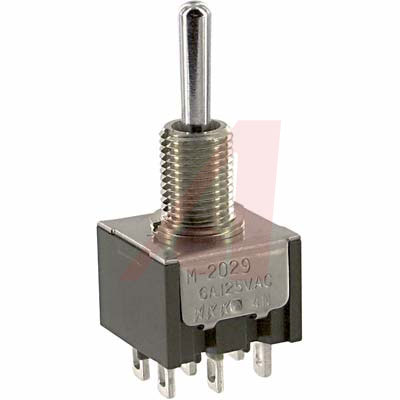

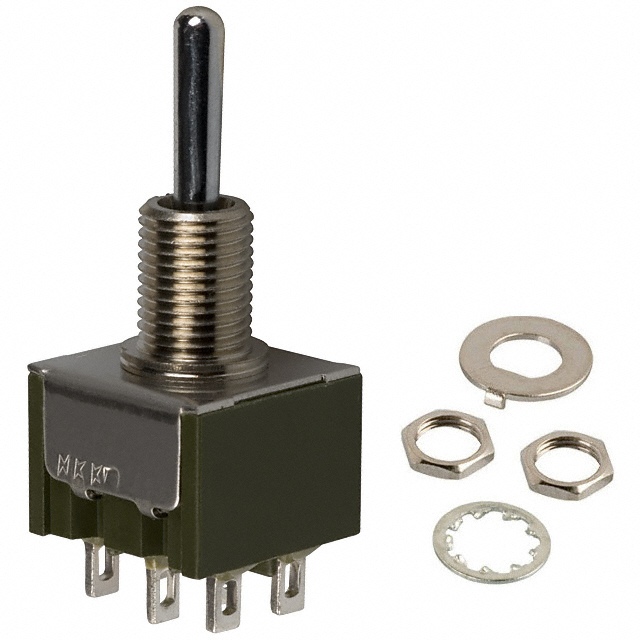

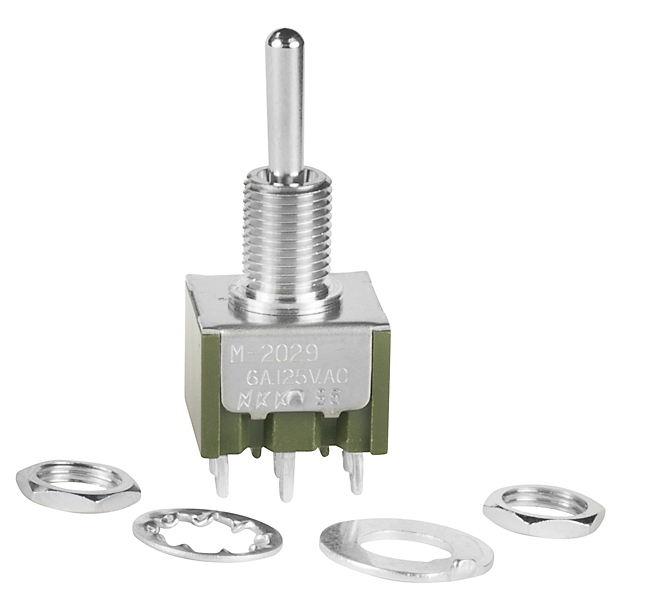

Control the status of your project with this M2029SS1W01 toggle switch from NKK Switches. It has a DPDT configuration. This device has a maximum current rating of 6 A @ 125VAC. This toggle switch has an operating temperature range of -30 °C to 85 °C. The M2029SS1W01 toggle switch has a solder lug termination style. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 30 VDC. This product is 13 mm long, 33.3 mm tall and 12.7 mm deep.
Allied Electronics:
SWITCH, TOGGLE, SUBMINIATURE, BAT LEVER, THREADED BUSHING, SOLDER LUG, DPDT
Chip1Stop:
Switch Toggle ON OFF ON DPDT Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
Verical:
Switch Toggle ON OFF ON DPDT Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads
Newark:
# NKK SWITCHES M2029SS1W01 Toggle Switch, M Series, Non Illuminated, DPDT, On-Off-On, Panel, 6 A
Powell:
MINIATURE TOGGLE/MULTI-FUNCTION
触点电镀 Silver
接触器类型 Standard
额定电流 6 A
绝缘电阻 1.00 GΩ
排数 2
方向 Vertical
触点类型 DPDT
易燃性等级 UL 94 V-0
针脚数 3
额定电流Max 6A @125VAC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压 250 VAC
接触电阻Max 10 mΩ
安装方式 Through Hole
长度 13 mm
宽度 12.7 mm
高度 33.3 mm
触点材质 Silver Alloy
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
