MAXIM INTEGRATED PRODUCTS MAX1098CEAE+ 模数转换器, 10 bit, 900 SPS, 单, 4.75 V, 5.25 V, SSOP
The is a 10bit serial output temperature sensor with 5-channel ADC in 16 pin SSOP package. It implement both local and remote temperature sensing with 10bit resolution, using +5V supply voltages, respectively. Accuracy is ±1°C from 0°C to +70°C with no calibration needed. The device features an algorithmic switched-capacitor ADC, on-chip clock and 3-wire serial interface compatible with SPI, QSPI and MICROWIRE. The MAX1098 also perform fully differential voltage measurements with 10bit resolution and separate track and hold T/N for positive and negative inputs. The device accept versatile input modes consisting of two 3-channel signal pairs, five 1-channel signals relative to AIN5 or VDD/4 relative to ground. An external reference may be used for more accurate voltage measurements. A shutdown mode and two standby modes provide multiple strategies for prolonging battery life in portable applications that require limited sampling throughput.
电源电压DC 4.75V min

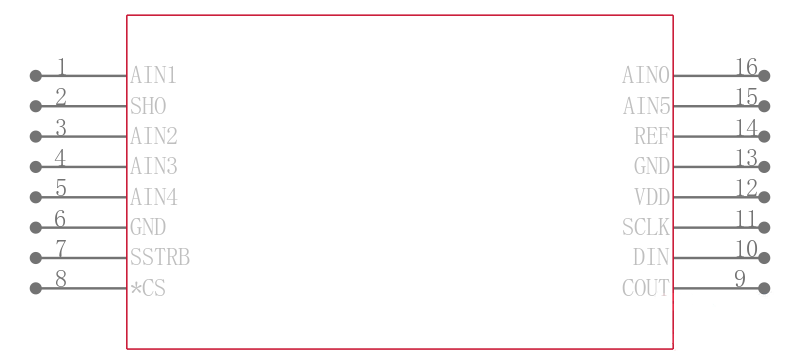

针脚数 16
位数 10
采样率 900 SPS
输入数 5
工作温度Max 85 ℃
工作温度Min -40 ℃
精度 ±4 ℃
电源电压Max 5.25 V
电源电压Min 4.75 V
安装方式 Surface Mount
引脚数 16

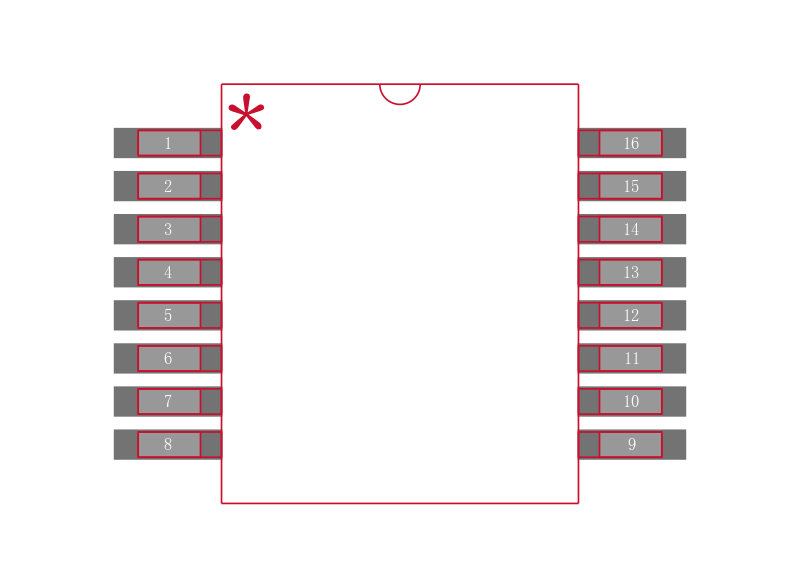

封装 SSOP-16
封装 SSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Unknown
包装方式 Each
制造应用 Industrial, Portable Devices, 工业, Sensing & Instrumentation, 便携式器材, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX1098CEAE+ Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX1098CEAE+T 美信 | 完全替代 | MAX1098CEAE+和MAX1098CEAE+T的区别 |
MAX1098CEAE 美信 | 类似代替 | MAX1098CEAE+和MAX1098CEAE的区别 |
MAX1098CEAE-T 美信 | 功能相似 | MAX1098CEAE+和MAX1098CEAE-T的区别 |
