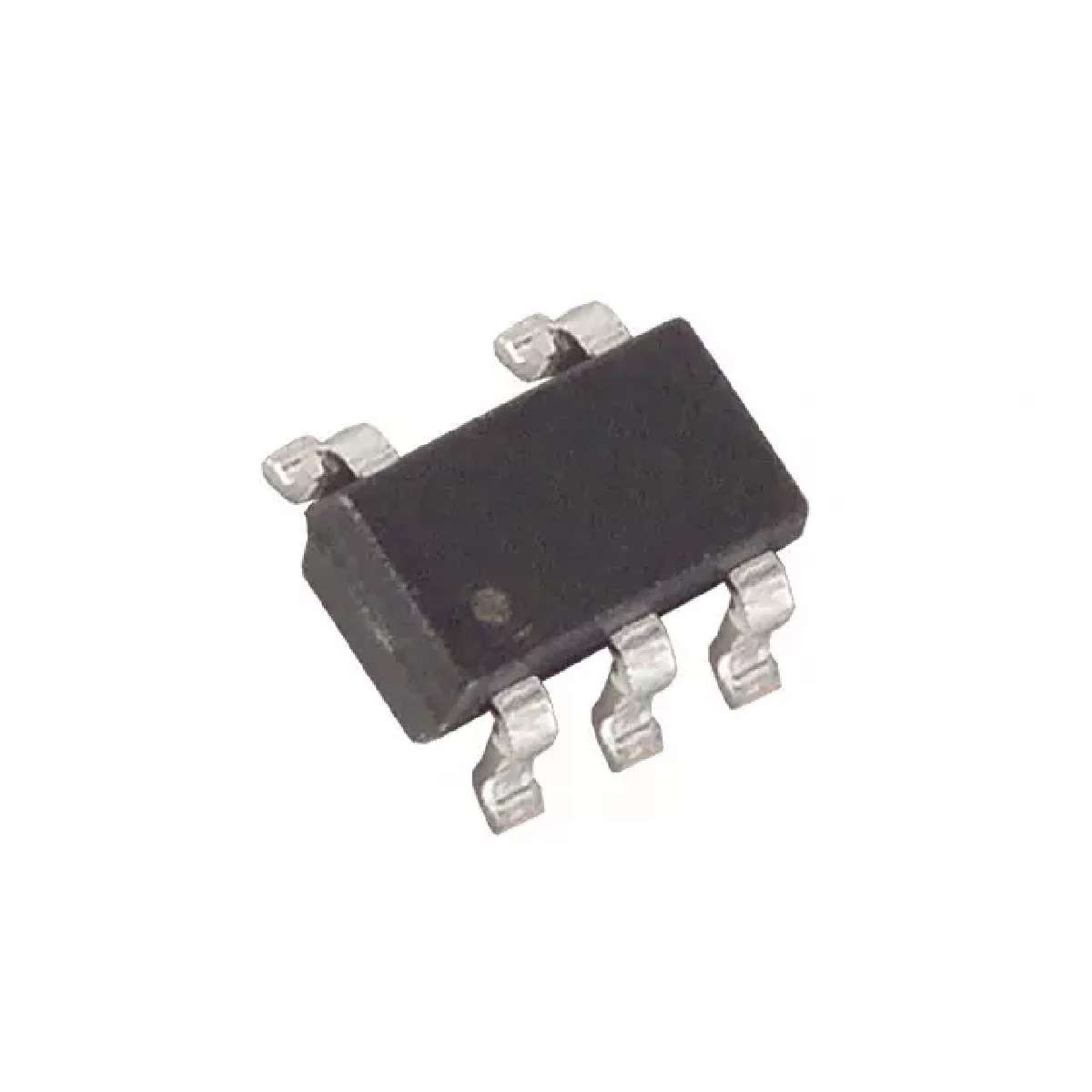

MAXIM INTEGRATED PRODUCTS MAX6509CAUK+T 温度传感器芯片, 可编程, 漏极开路, ± 0.5°C, -40 °C, 125 °C, SOT-23, 5 引脚
The is a resistor-programmable temperature switch in 5 pin SOT-23 package. This fully integrated temperature switch incorporate two temperature dependent references and one comparator, one reference exhibits a positive temperature coefficient and the other negative temperature coefficient. IC is programmed for a wide range of temperature thresholds from -40°C to +125°C. The temperature threshold is set by an external resistor between SET & GND and the temperature at which the two reference voltages are equal determines the temperature trip point. IC"s output easily interfaces with a microprocessor µP reset input, it is used in µP temperature monitoring in high speed computers, temperature control and temperature alarms.
电源电压DC 2.70V min
供电电流 32 µA
针脚数 5
耗散功率 571 mW
输出电流Max 20 mA
工作温度Max 125 ℃
工作温度Min 40 ℃
精度 ±4.7 ℃
电源电压 2.7V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 2.7 V
安装方式 Surface Mount
引脚数 5
封装 SOT-23-5
封装 SOT-23-5
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Industrial, 工业, Sensing & Instrumentation, 传感与仪器
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX6509CAUK+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX6509HAUK+T 美信 | 类似代替 | MAX6509CAUK+T和MAX6509HAUK+T的区别 |
MAX6509HAUK-T 美信 | 类似代替 | MAX6509CAUK+T和MAX6509HAUK-T的区别 |
MAX6509CAUK-T 美信 | 类似代替 | MAX6509CAUK+T和MAX6509CAUK-T的区别 |
